Select your floorplan

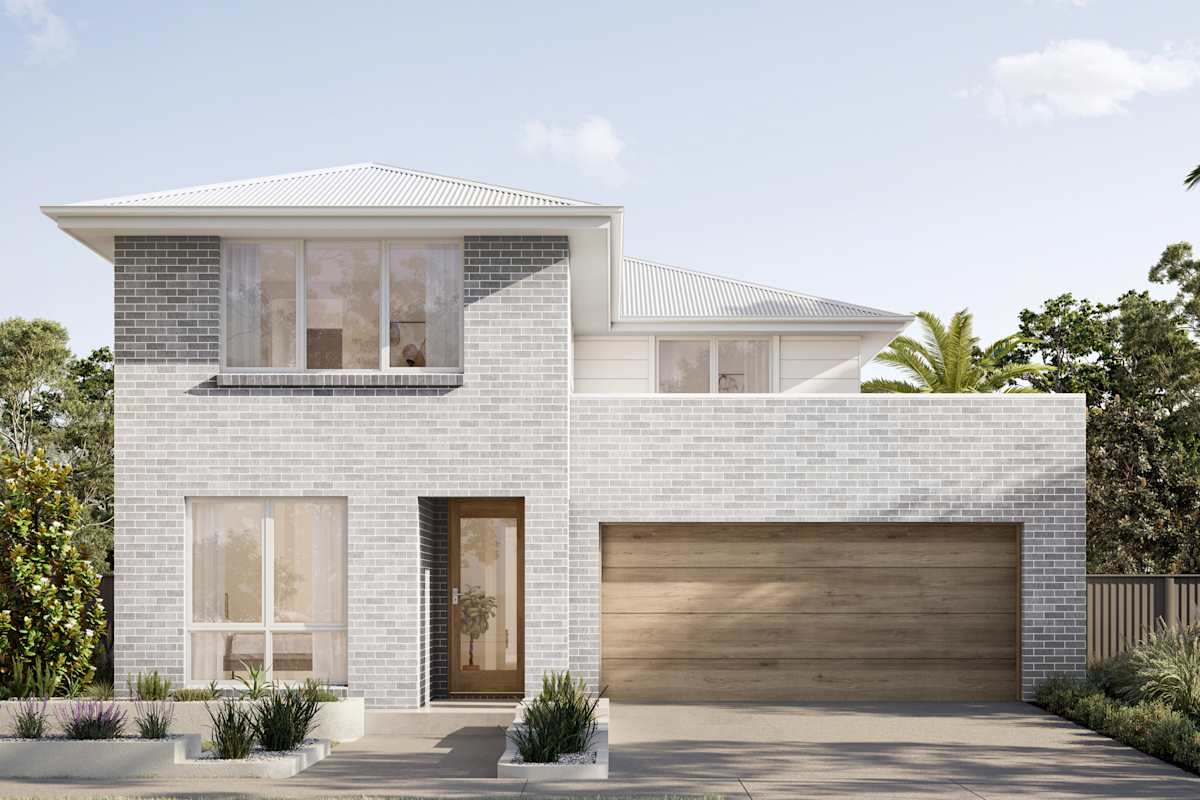

All measurements displayed in Gallery Collection floorplans portray the Classic Facade. Floor plans will differ slightly with other facade options.

Gallery Collection

Grayson 33

30 33
4
3
1
3
2
12.5m

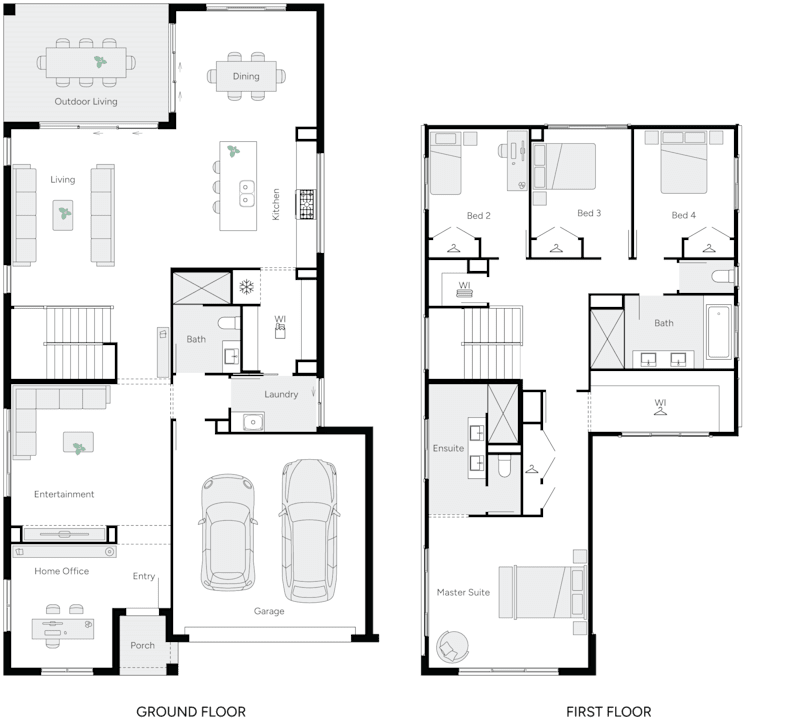

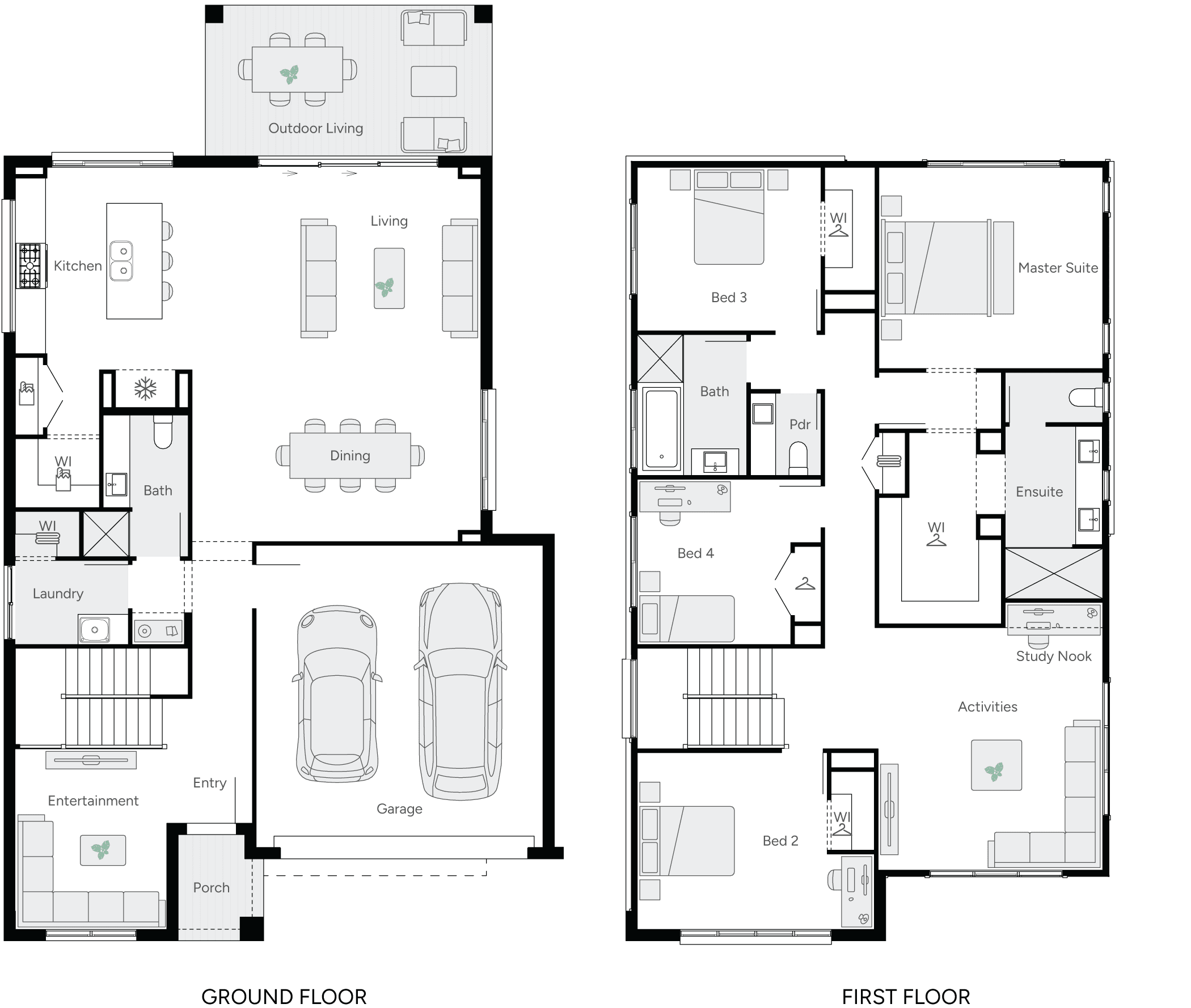

Grayson 33 Double Storey House Floor Plan
Gallery Collection

Grayson 33

30 33
4
3
1
3
2
12.5m
House Dimensions
House Width: 11.1m House Depth: 18.6m Total: 308.5m²
Floorplan Options
Room Dimensions
Meals
5.7m x 3.4m
Entertainment
3m x 3.6m
Family
5.7m x 4m
Master Suite
4.5m x 4m
Bed 2
4.7m x 3.5m
Bed 3
3.7m x 3.3m
Bed 4
3.7m x 3.3m
Activities
4.5m x 4.8m
Outdoor Living
5.7m x 3m
Double Garage
5.7m x 6m
Porch
1.7m x 2.1m

Your inclusions

Better with Brighton
  • 4 zone reverse cycle ducted air conditioning.
  • Houseframe made from TrueCore steel.
  • A choice from a wide range of quality tiles throughout your entry, kitchen and living areas, with carpet through all bedrooms, entertainment rooms, study / home office and upstairs.
  • 3.5kW Solar System with Tier 1 Jinko Panels and a 3kW SolaX Inverter.
MyChoice Design Studio
  • Full colour & electrical consultation at MyChoice Design Studio.
Earthworks & Connections
  • Maximum of 500mm fall over building platform, made up of 250mm equal cut/fill.
  • Blocks up to 640m2 include underground power, sewer, stormwater, and water connection to specific points up to 8 lineal metres from mains connection point.
  • S class slab.
Framing & Roof Construction
  • Colorbond steel roofing includes 22.5 degree pitch (Includes N2 wind rating).

  • Quad fascia and gutter available in Colorbond colours.

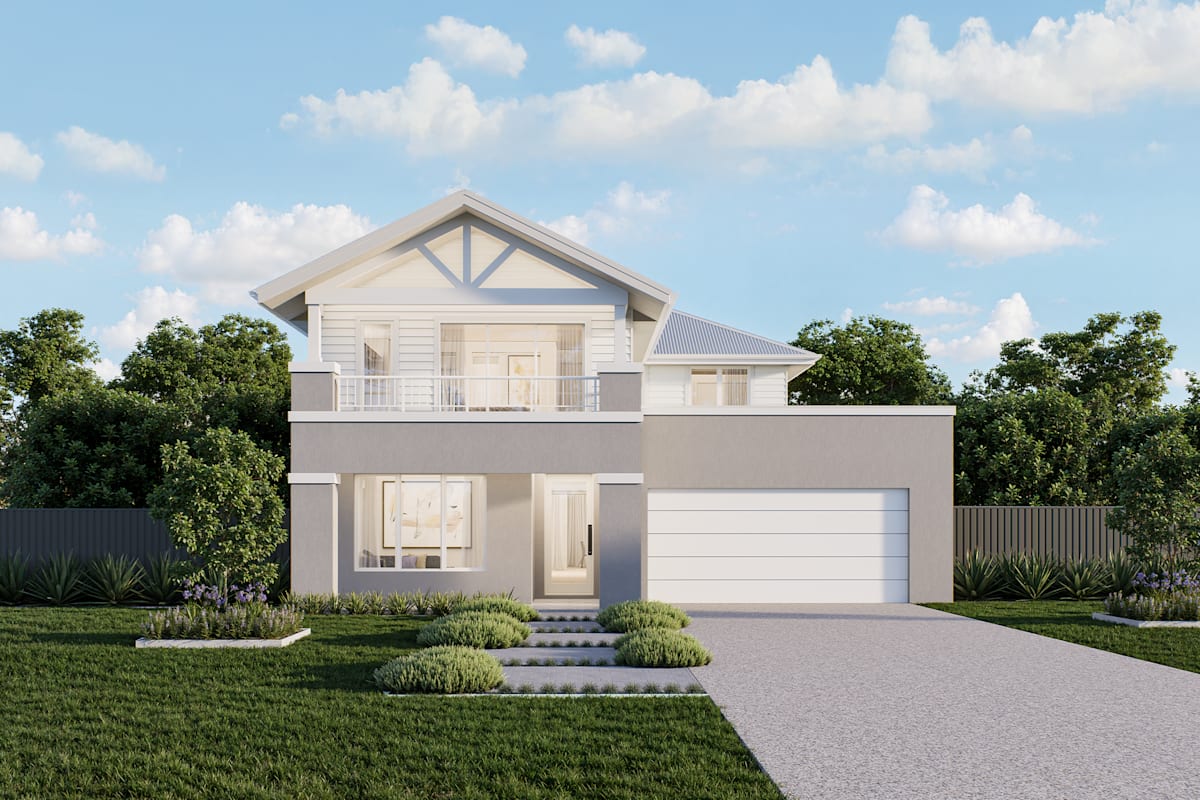

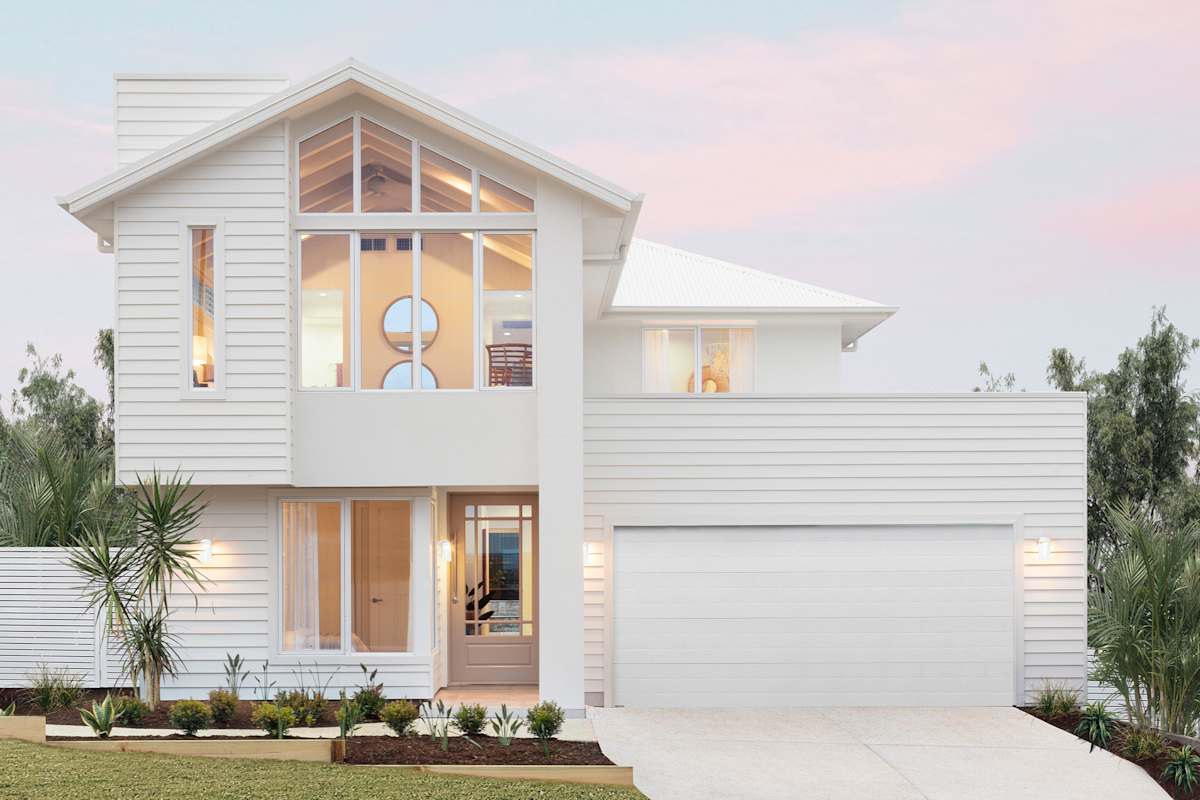

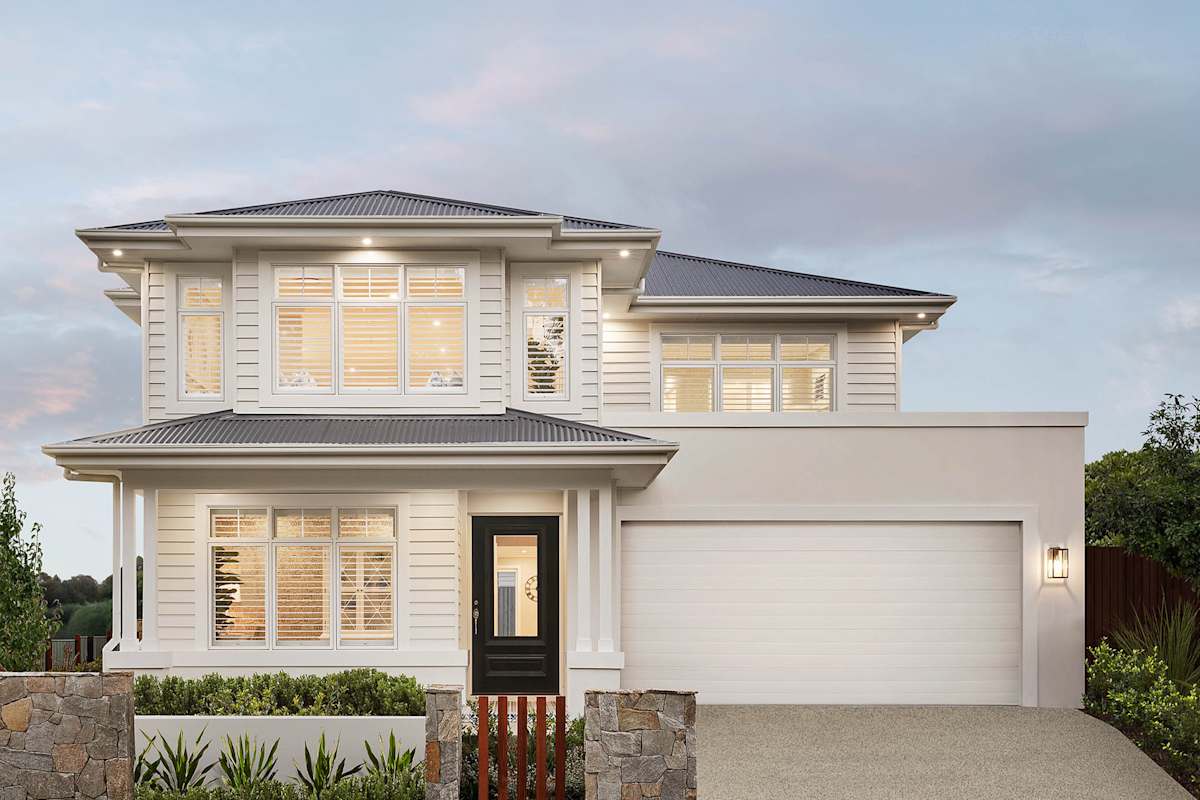

Facade & External Finish

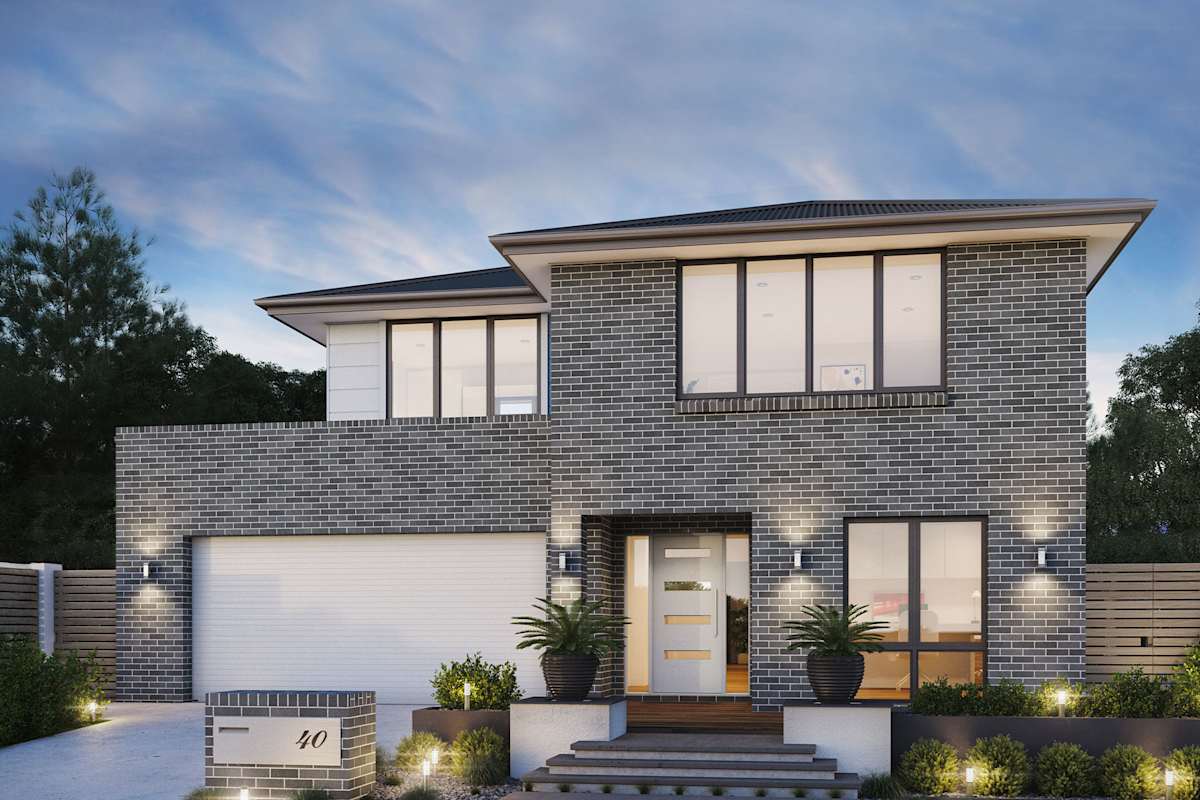

  • Classic facade in face brick with a wide choice of colours from the Austral Brick & Everyday Life & Coastal ranges with natural mortar.
  • Sectional overhead automatic garage door available in 5 profiles with 20+ colours. Includes 2 remotes and 1 wall controller.
  • Lightweight cladding (Axon) to first floor sides and rear and as per working drawings.
  • Powder coated framed glass balustrade to balcony balustrade (design specific).
  • 2 coat Taubmans All Weather to eaves sofit.
External Doors & Windows
  • Choice of Hume ‘Nexus’ or ‘Newington’ 2340mm high x 920mm wide entry door with paint finish and clear glass inserts. Excludes sidelight.
  • Gainsborough Trilock Contemporary door furniture in satin or bright chrome to front entry door.
  • Flush Panel external door to garage with Gainsborough Governor knobset in satin or bright chrome with lockset function (plan specific).
  • Aluminium powder coated key lock windows and sliding doors.
Kitchen
  • Kitchen cabinetry includes a flat profile laminate finish with 2 laminate colours as standard and a 3rd colour to your kickboard. Choose from a wide range of laminate colours.
  • Overhead cupboards to kitchen featuring flat profile portrait laminate doors. Bulkheads are included above your overheads with a 16mm shadowline.
  • Choice of a wide range of designer handles and finger-pull or push to open to overheads.
  • Soft closers throughout, excluding to push to open.
  • 20mm Caesarstone to kitchen benchtop with 40mm edge Caesarstone to island bench and 16mm shadowline below benchtop. Choose from a range of stone colours in our MyChoice Design Studio.
  • Pot drawer to below microwave space (plan specific).
  • Double stainless steel undermount kitchen sink with polished stone edge.
  • Choice of Mizu Soothe Pulldown Sink Mixer or Mizu Soothe Pullout Sink Mixer.
  • Tiled splashback to rear of kitchen only and sits at approx. 700mm high.
  • Fisher & Paykel 900mm S/Steel Freestanding Oven with Gas Cooktop.
  • Fisher & Paykel S/Steel canopy rangehood.
  • Fisher & Paykel 28L built-in microwave.
  • Fisher & Paykel dishwasher.
  • 1 gas point included for natural gas or LPG bottles (LPG bottles excluded).
  • Pantry includes 4 white melamine shelves.
  • Tap to fridge water point.
Laundry
  • Laminated 32mm benchtop with 16mm shadowline below.
  • Up to 1000mm wide laminate cabinet (design specific)
  • Soft close doors to cabinetry, excluding to push to open.
  • Choose from a wide range of cabinetry handles and laminate colours to cabinet and benchtop.
  • Base 42L laundry drop in tub with concealed bypass.
  • Posh Bristol Mk2 chrome sink mixer.
  • 2100mm high aluminium sliding door (plan specific).
  • 100mm tiled skirt.
  • 300mm high tiled spashback (or 1 tile high) over laundry cabinet.
Bathroom & Ensuites
  • Laminated 2 door floating vanity unit.
  • Choose from a wide range of cabinetry handles and laminate colours to vanity.
  • Soft closers included to vanity doors.
  • 20mm Caesarstone to vanity benchtops. Choose from a range of colours in the MyChoice Design Studio.
  • Choice of 3 modern vanity basins to ensuite & main bathrooms.
  • Choice of 5 Mizu tapware ranges to vanity mixer taps, shower/bath mixer and bath spout.
  • Decina Metro rectangular bath with tiled hob surround to main bathroom.
  • Base freestanding bathtub to ensuite only (plan and size specific).
  • Posh Domaine close coupled rimless toilet suite with soft close seat.
  • NCC Compliant shower includes stainless steel angle with maximum 5mm tile stepdown which includes 70mm slab or floor recess to shower only.
  • Mizu accessories including a double towel rail to main bathroom and ensuite, plus a toilet roll holder to all toilets. Choose from 3 ranges.
  • Semi frameless shower screen with slimline stainless steel hob angle.
  • Mizu Drift Twin 300 shower on rail with 3 function hand shower to master ensuite and Mizu Drift single handheld shower on rail to main bathroom and guest bathrooms.
  • Square chrome floor wastes to shower recess only.
  • Contemporary frameless mirror to all vanities.
  • Wide selection of ceramic tiling to wet areas from our MyChoice Design Studio. Including floor tiles (up to 450mmx450mm), 300mm high splashback to vanity and bath, and 100mm skirt to remainder.
  • Externally ducted exhaust fans (where required for NCC compliance). Includes Ventair run on 10 minute timer.
Powder Rooms
  • Laminated drop front floating vanity shelf to width of powder room (plan specific). Choose from a wide range of laminate colours.
  • Choice of 3 vanity basins and 5 Mizu wall mounted mixer sets.
  • Mizu toiler roll holder and hand towel ring in a choice of 3 ranges.
  • Contemporary frameless mirror to vanity.
  • Poshe Domaine close coupled rimless toilet suite with soft close seat.
  • 300mm high tiled splashback to rear of vanities.
  • 100mm tile to remainder of skirts.
  • Externally ducted exhaust fans (where required for NCC compliance). Includes Ventair run on 10 minute timer.
Internal Finishes
  • 3 coat Taubmans ‘Endure’ paint system to all internal walls. 1 main wall colour and one skirt and arch colour. Choose from a wide range of paint colours in our MyChoice Design Studio.
  • Flat acrylic finish to ceiling. Ultimate enamel to skirts, archs & doors.
  • 2340mm extra high flush panel doors throughout including robes and linen (downstairs of doubles only). 2040mm to upper level (if applicable).
  • Gainsborough Internal Lever set from G4 series (chrome or satin) throughout with privacy locks to all wet areas.
  • Cushioned door stops to all internal doors.
  • 67mm skirting and architrave throughout.
Ceiling
  • 2590mm ceiling height to ground floors and 2440mm to upper level.
  • Square set cornice to double storey entry and main living area. 75mm cove cornice to remainder of doubles and all singles.
  • Bulkheads throughout (plan specific) to add dimension and define space.

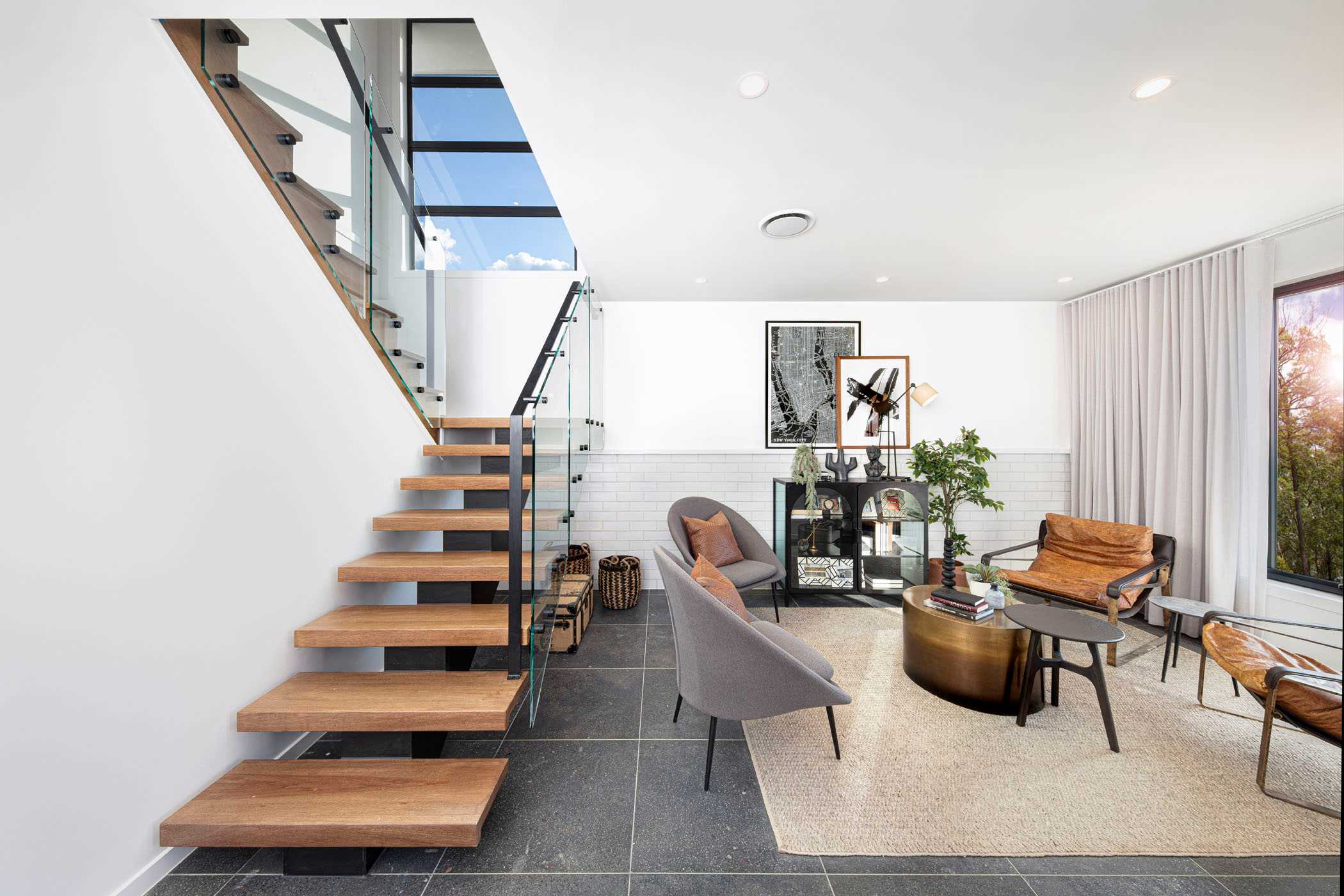

Stairs
  • Stained timber stair treads and risers, including stringer, handrail and posts (Durian Timber).
  • Matt black or satin silver powder coated balusters in either round or square profile.
Outdoor Living
  • Fully lined plaster ceiling with painted timber beading to outer edge to Outdoor Living and porch.
  • High 2400mm stacker door(s) to Outdoor Living.
Electricals
  • One double power point to each habitable room including garage (single to fridge, microwave space, dishwasher, rangehood and garage door).
  • One x pack 10 White LED downlights throughout. One light point with batten holder per room to remainder.
  • One downlight to front porch, one batten holder to outdoor living and one batten holder external to the laundry (single flood light where no eaves).
  • Externally ducted exhaust fans (where required for NCC compliance).
  • 2 TV points to singles and 3 to doubles. Includes Ventair run on 10 minute timer.
  • 1 phone point (If NBN available, phone point will be in garage with NBN provision).
  • Hard wired smoke detectors compliant with legislation.
  • Clipsal iconic light switch’s in vivid white.
  • Ceiling fans throughout the house to all living areas, bedrooms and Outdoor Living (design specific), excluding dining room and study nook.
  • 1200mm white 4 blade to single story designs
  • 1400mm white 4 blade to double story designs
Plumbing
  • 315L Electric Everhot by Rheem.
  • Two external taps - one to front and one to rear.
Energy Efficiency
  • Wall wrap and R2.0 wall batts to all external light weight cladded walls.
  • R3.0 insulation batts to ceiling including outdoor living & garage (excluding eaves).
  • Wall wrap and R2.0 Wall batts to all brick veneer walls of a double story home only. Wall wrap to all brick veneer walls of a single story home.
  • R2.0 wall batts to the garage/house internal wall of a double storey home only.
  • Anticon blanket to all double storey designs only.
  • Winddriven roof ventilator 300mm with eave vents.
Termite Protection
  • Termite barrier system to Australian Standards 3660.1.
General Items
  • Contour survey, soil report and engineers slab design.
  • QBCC Insurance fees (calculated on base price).
  • Q Leave Insurance Fees (calculated on base price).
  • Pricing applies to homes built within the Brisbane City Council area only.
  • Additional fees may apply for construction within other local authorities.
  • HIA ‘Peace Of Mind’ building contract.
Create an account & save your

Grayson 33 Home Design

Do you like what you see here? Create an account today and save your home, forever.

Save your home and your specific selections for later so you can discuss your options with your family and friends, make further changes if needed or compare with other designs. Then when you're ready talk to one of our friendly building and design consultants to get your building journey started.

Enquire about your Grayson 33

Fill in your details below. Your enquiry along with the floorplan, facade, and promotions selections you've made will be forwarded to our team of experienced building and design consultants to help get your new home building journey started. When you submit the form you'll also receive a PDF download of your selections.

Your Grayson 33 home selections

Display Home locations

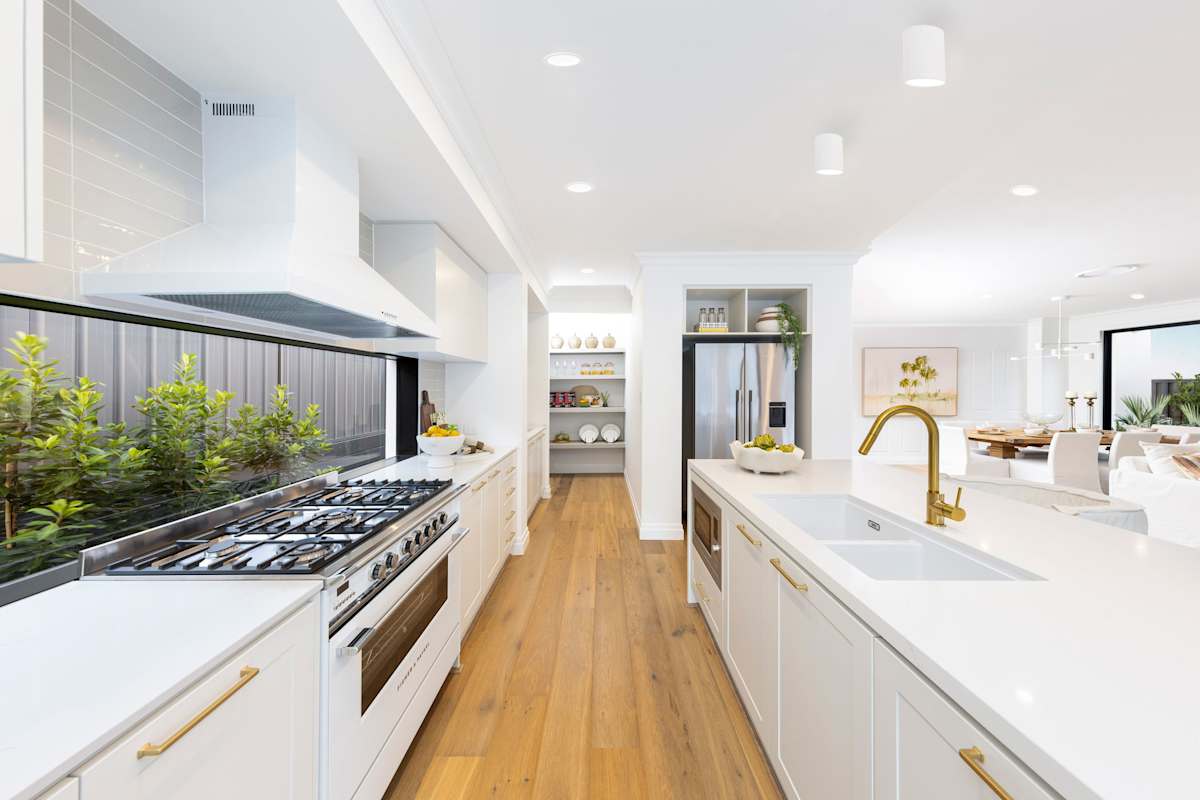

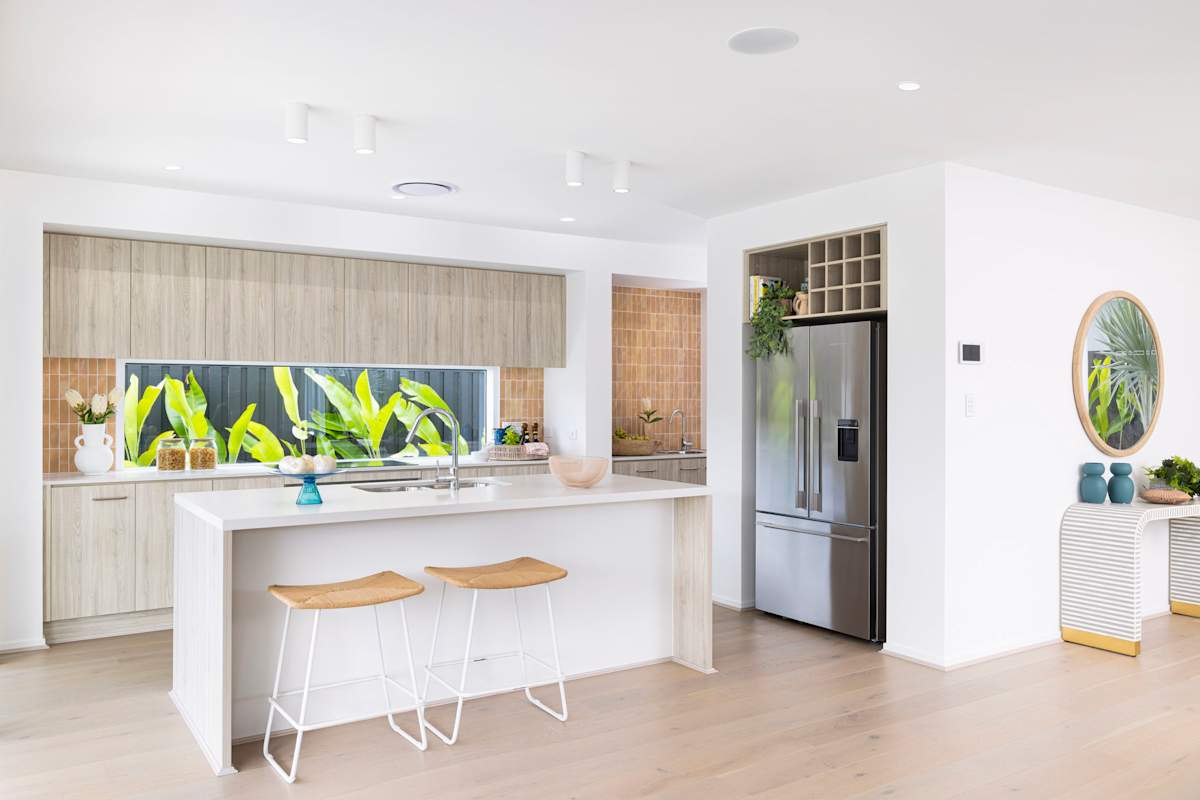

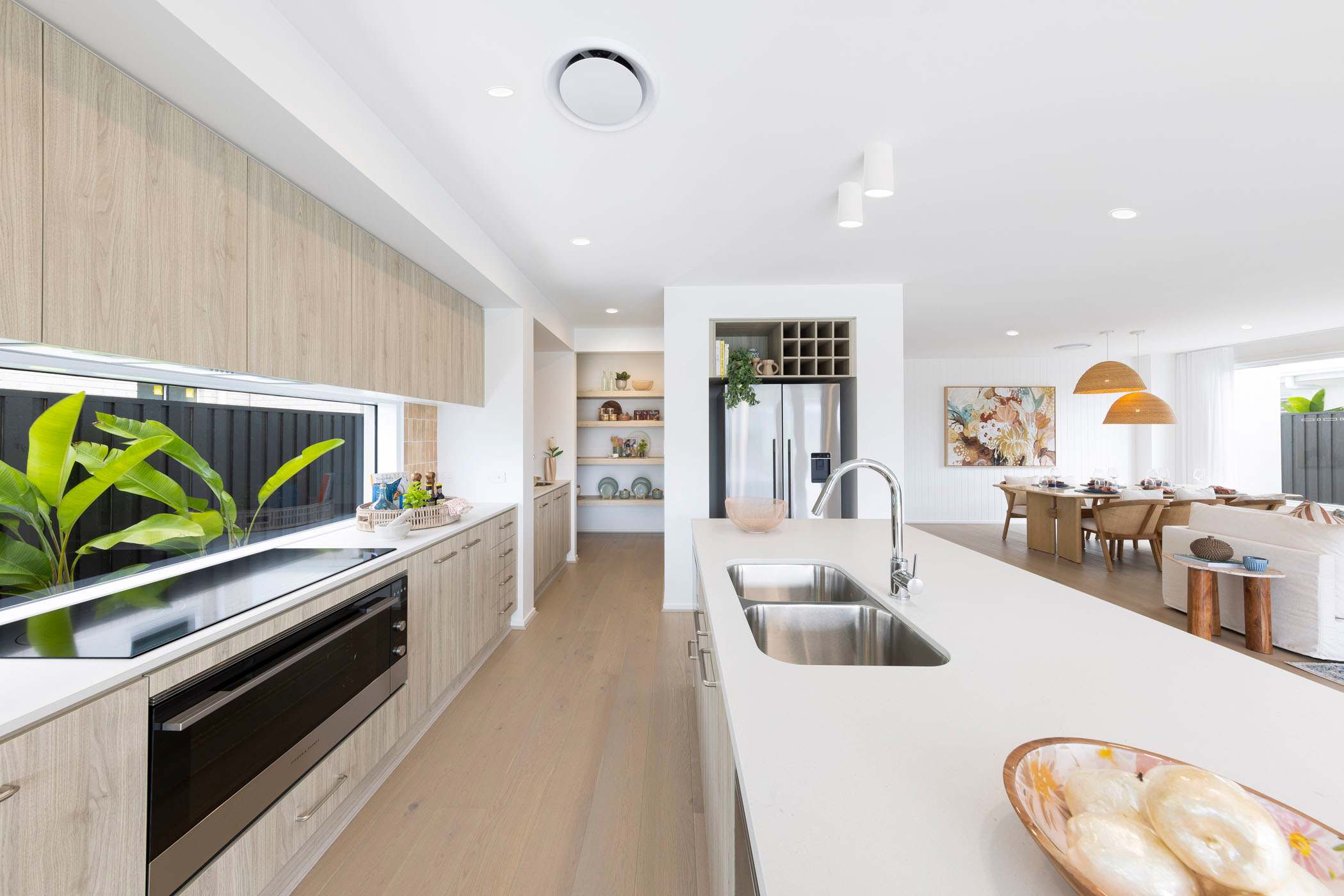

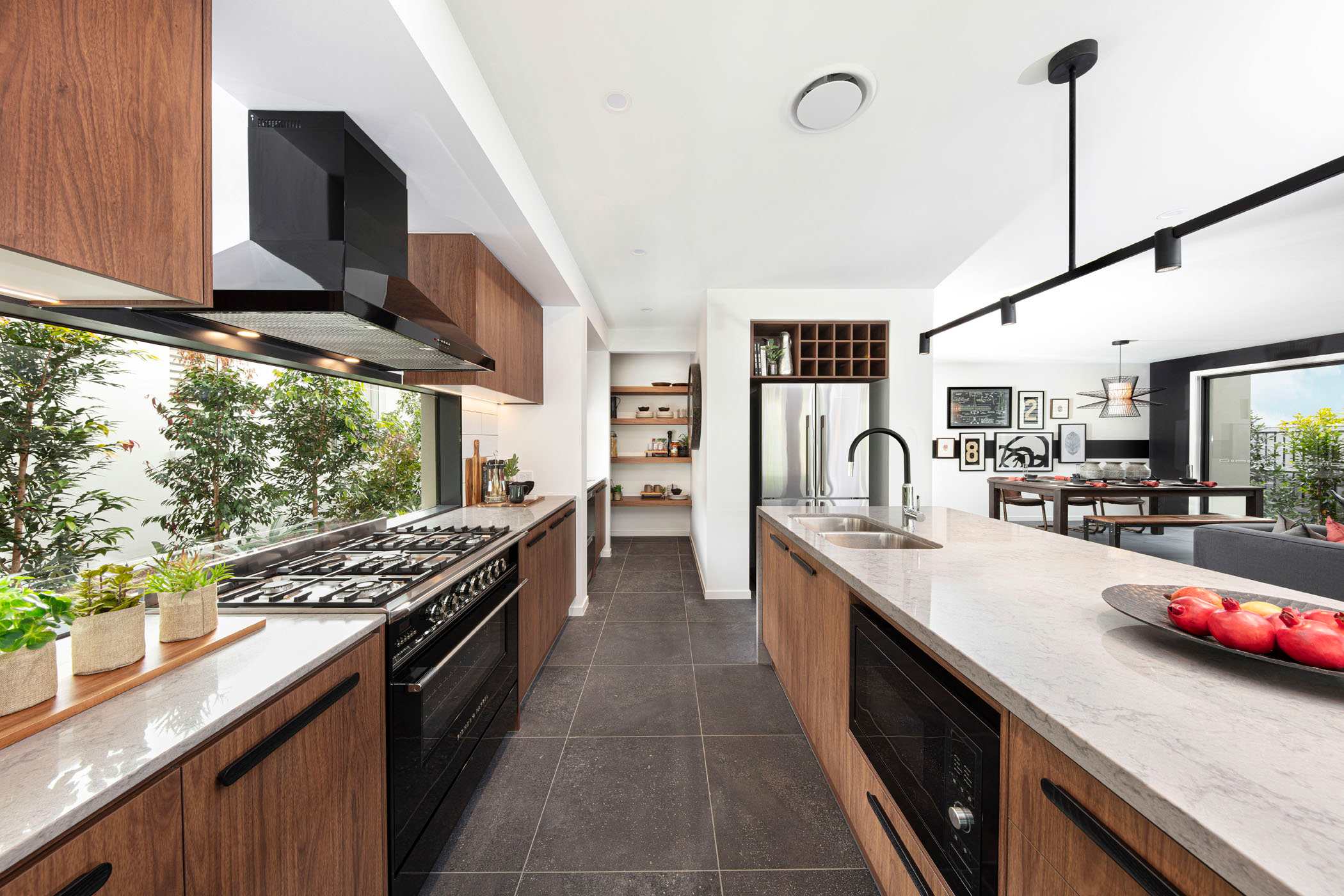

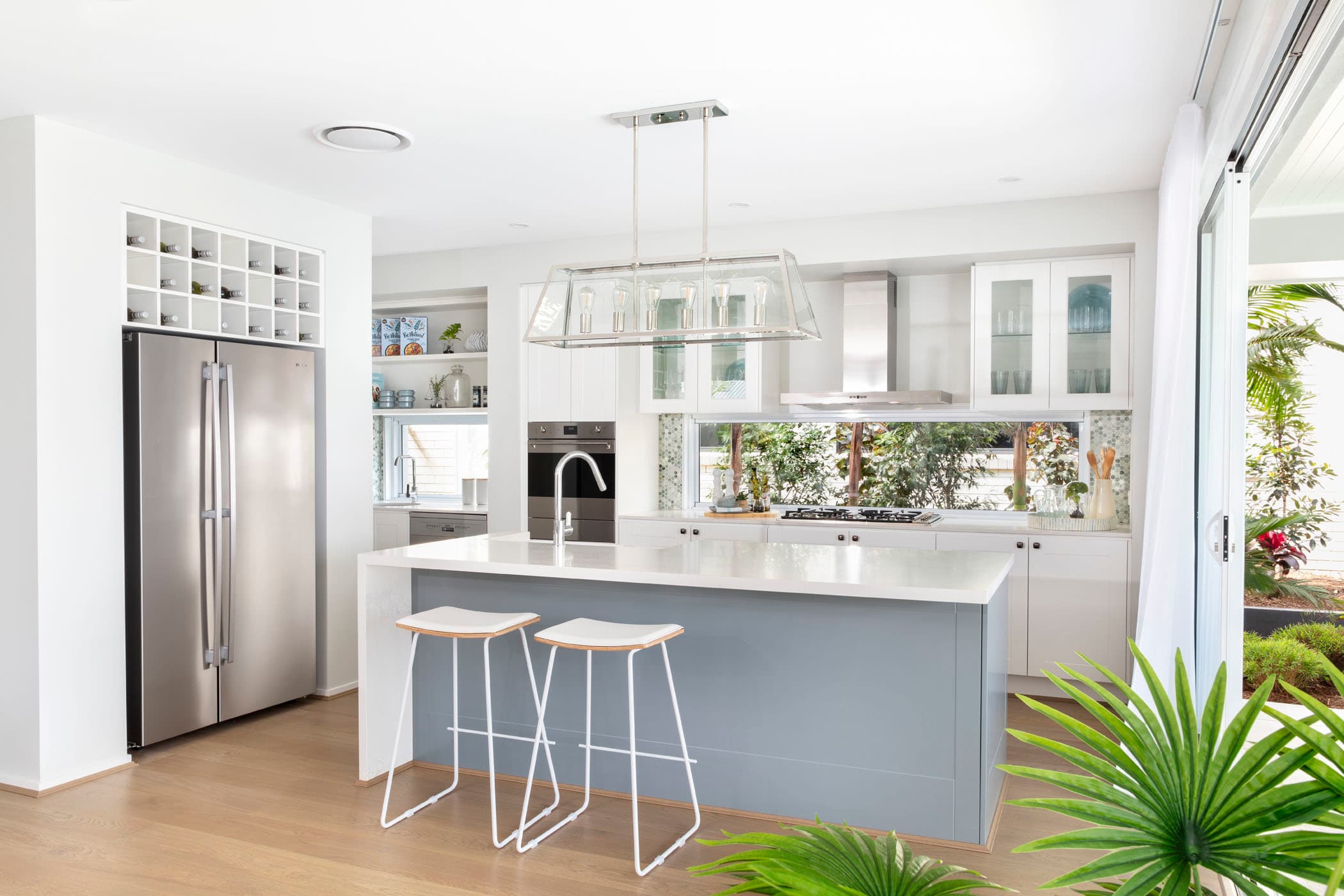

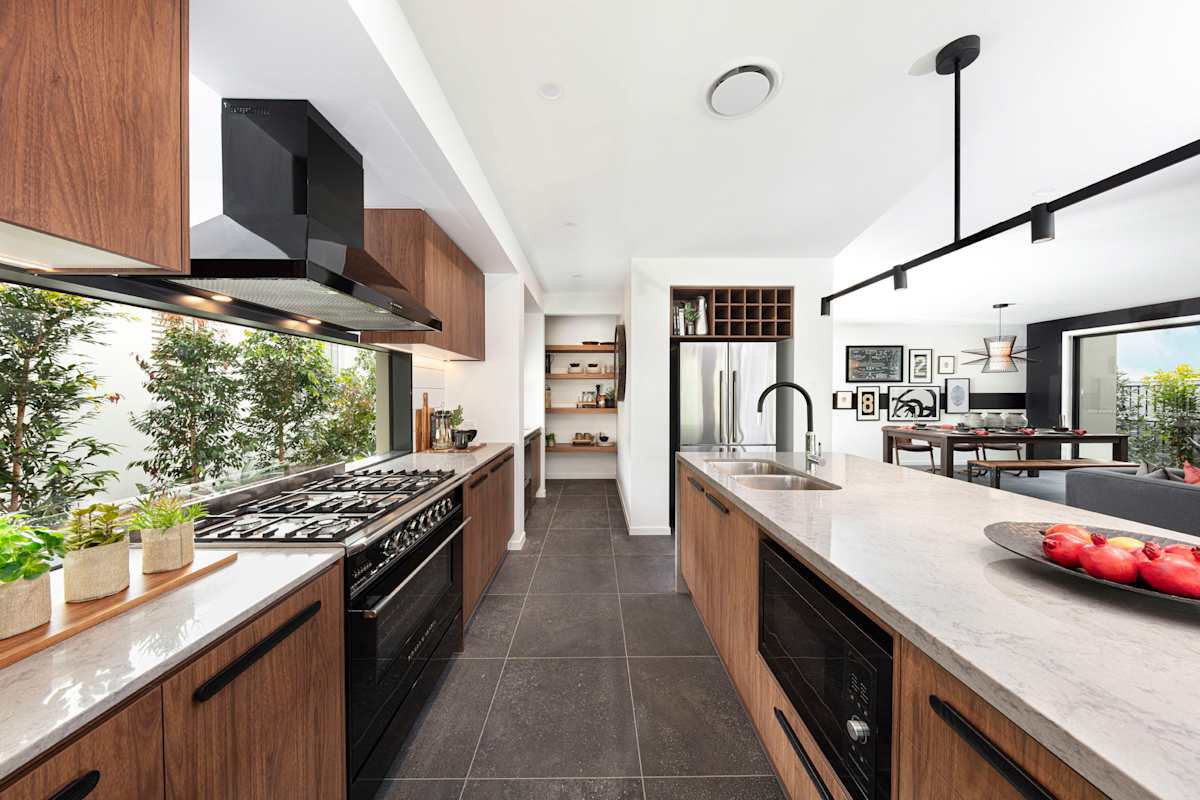

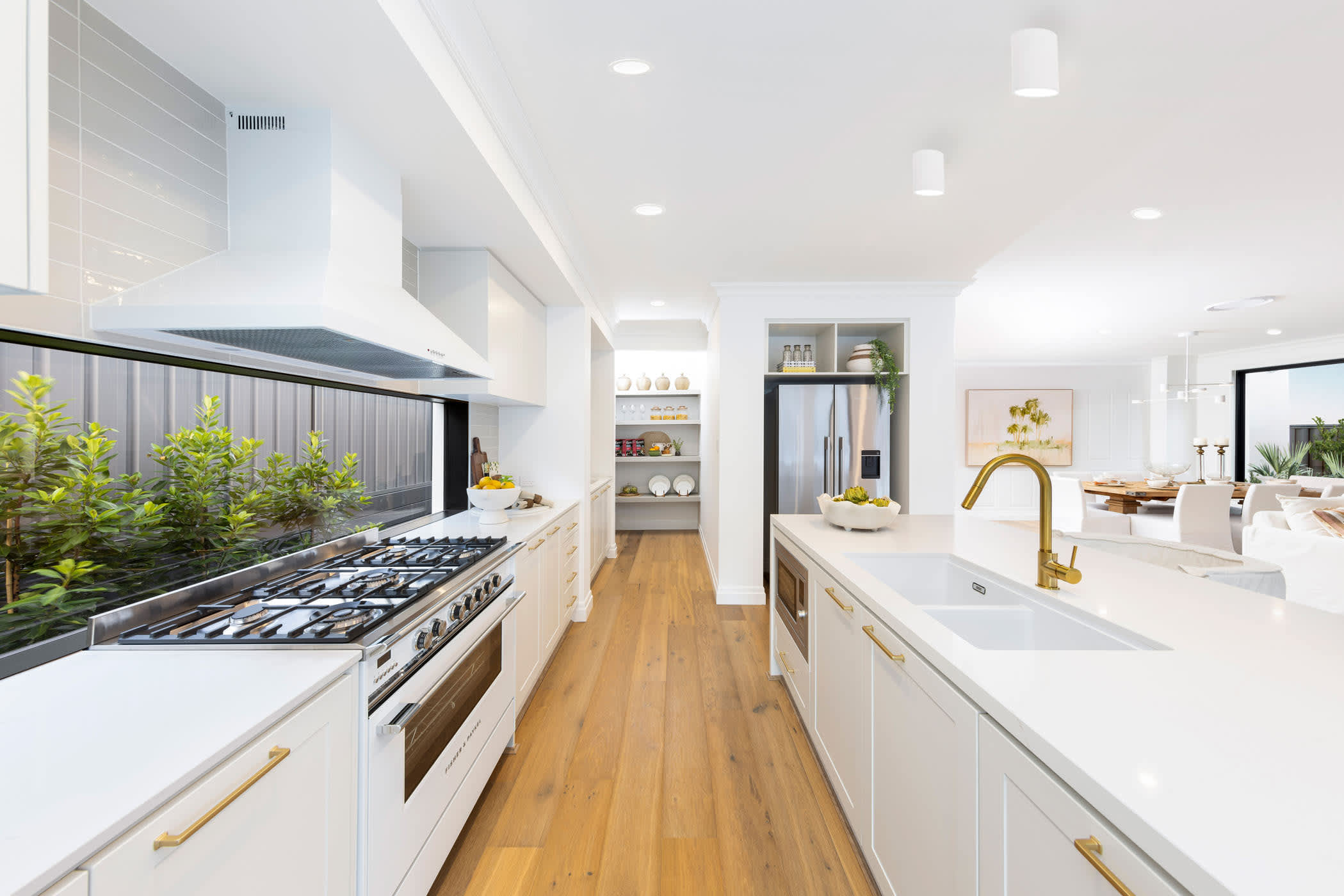

Grayson 33 home design kitchen

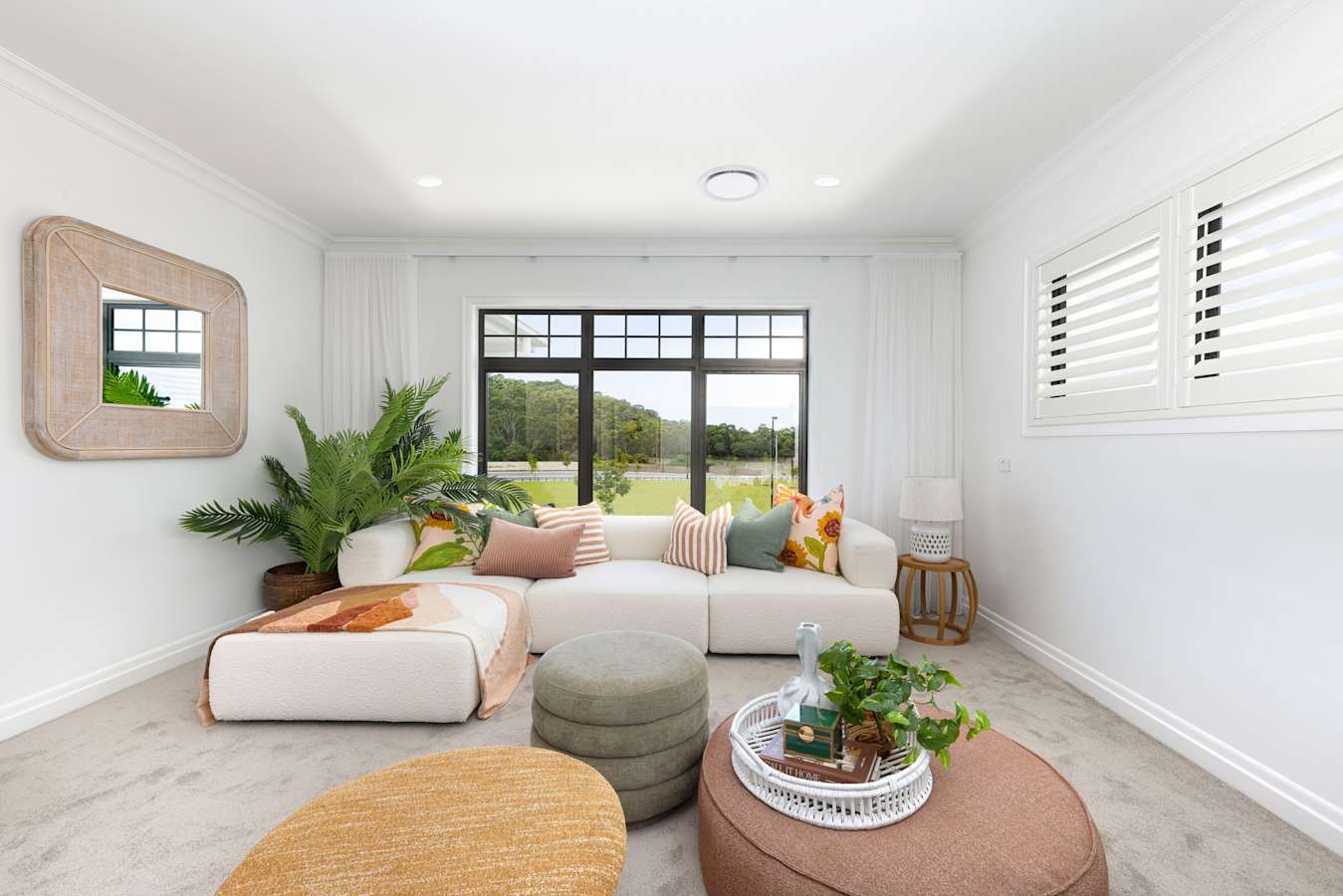

Grayson 33 home design activity room

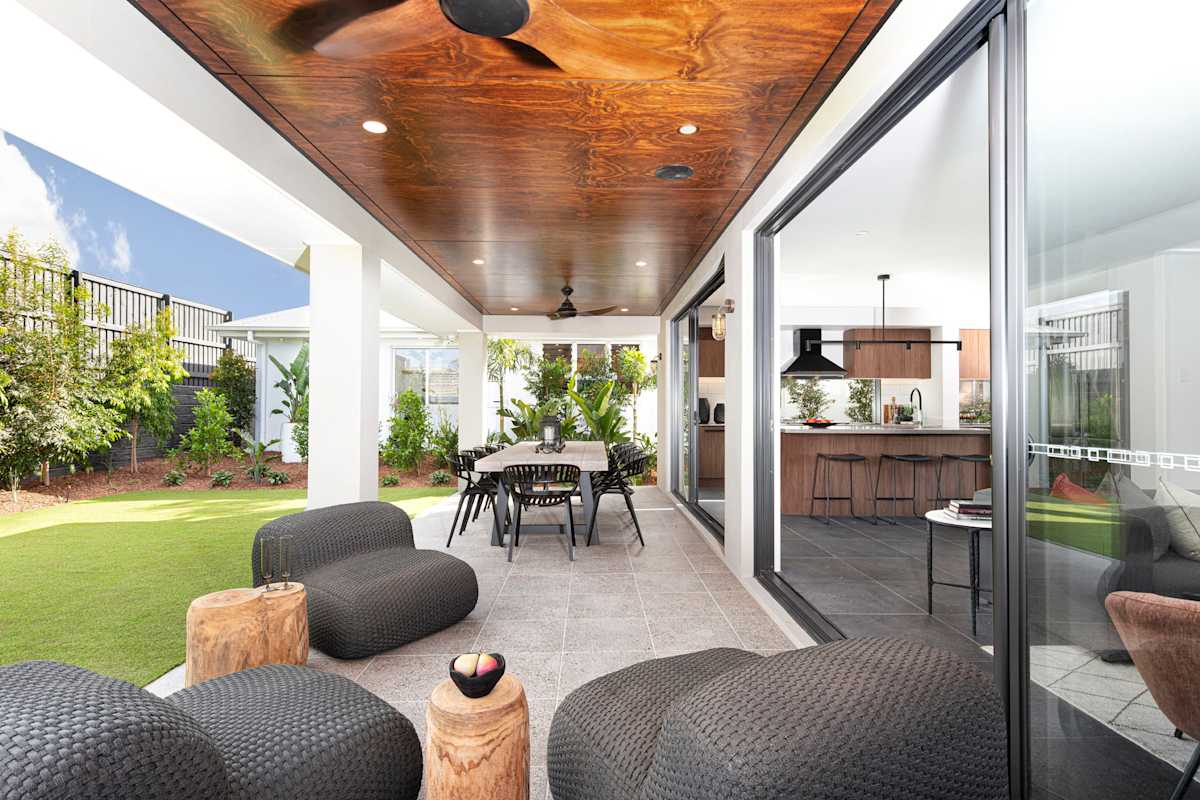

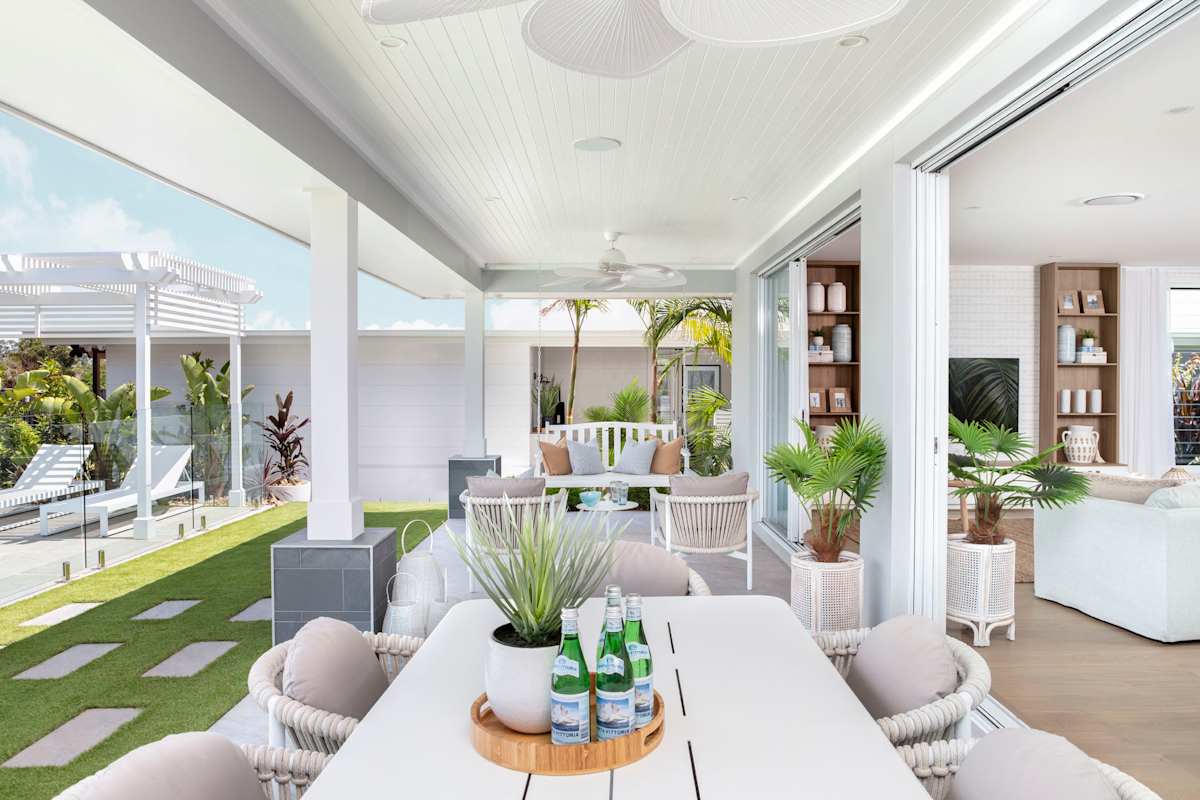

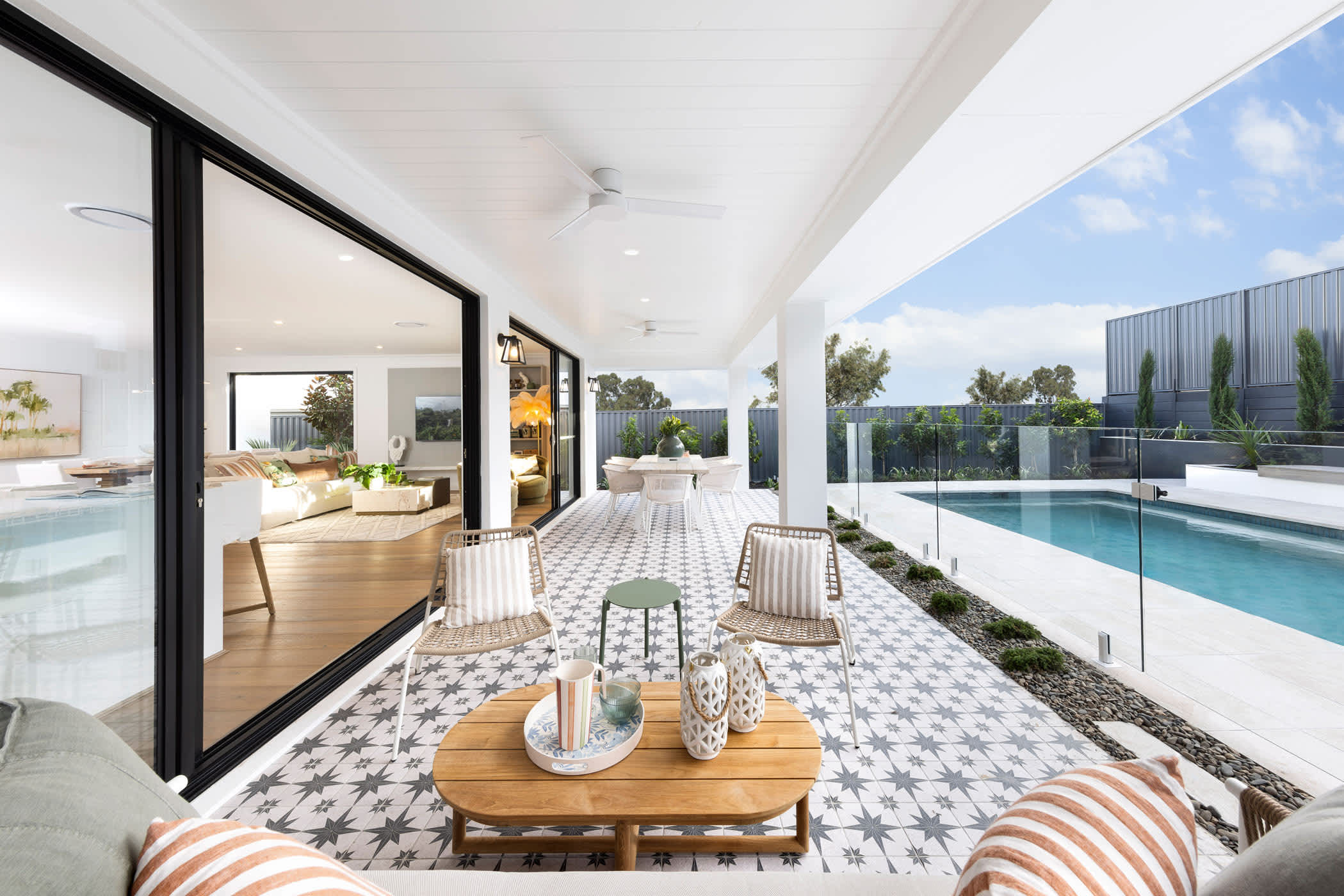

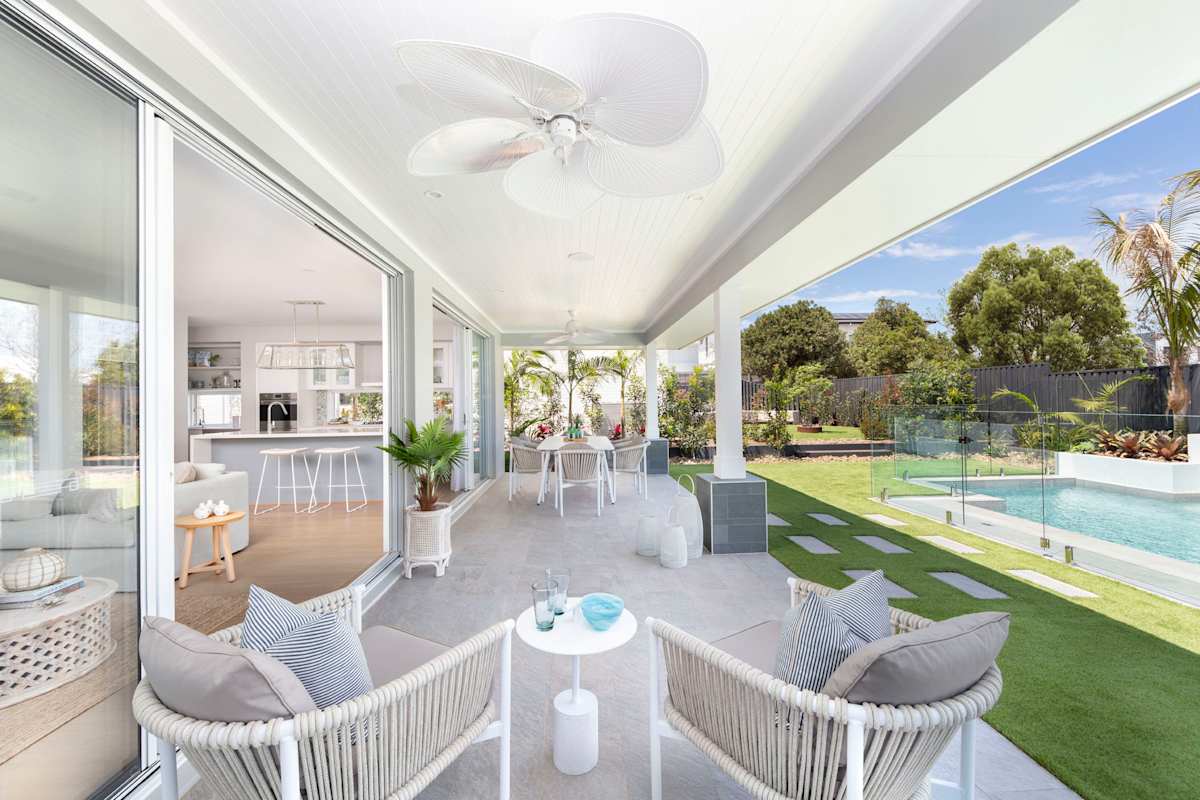

Grayson 33 home design outdoor living

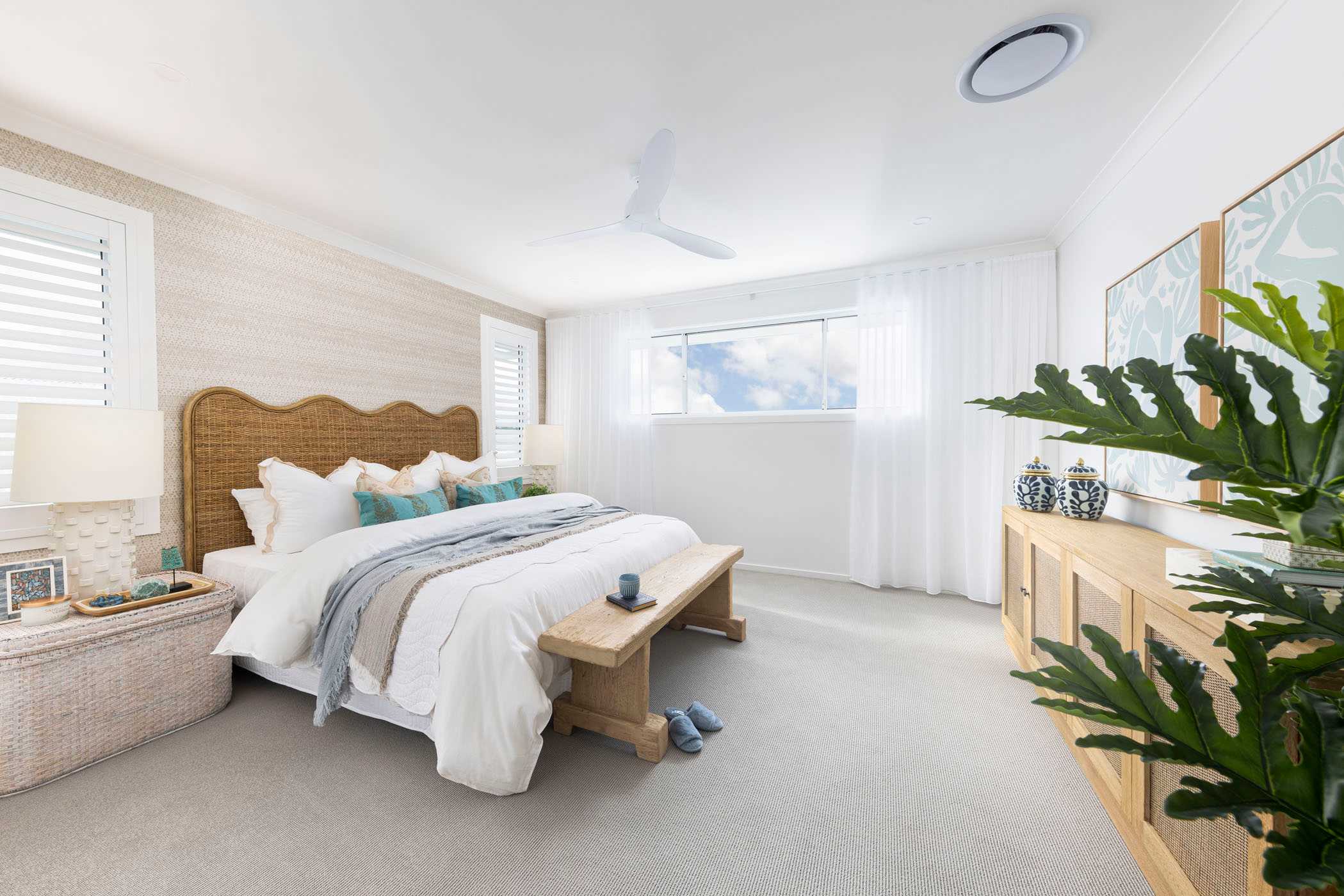

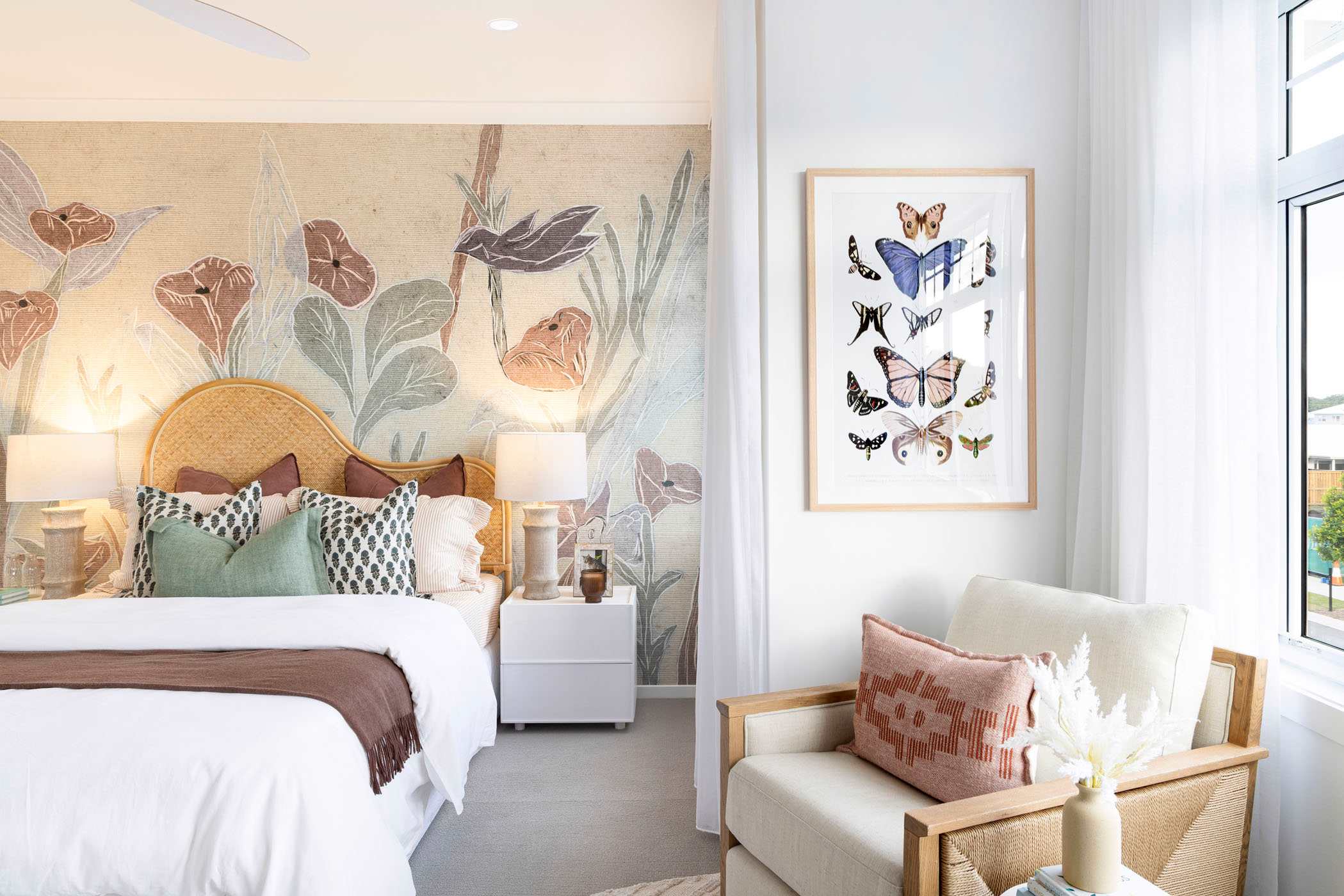

Grayson 33 home design bedroom

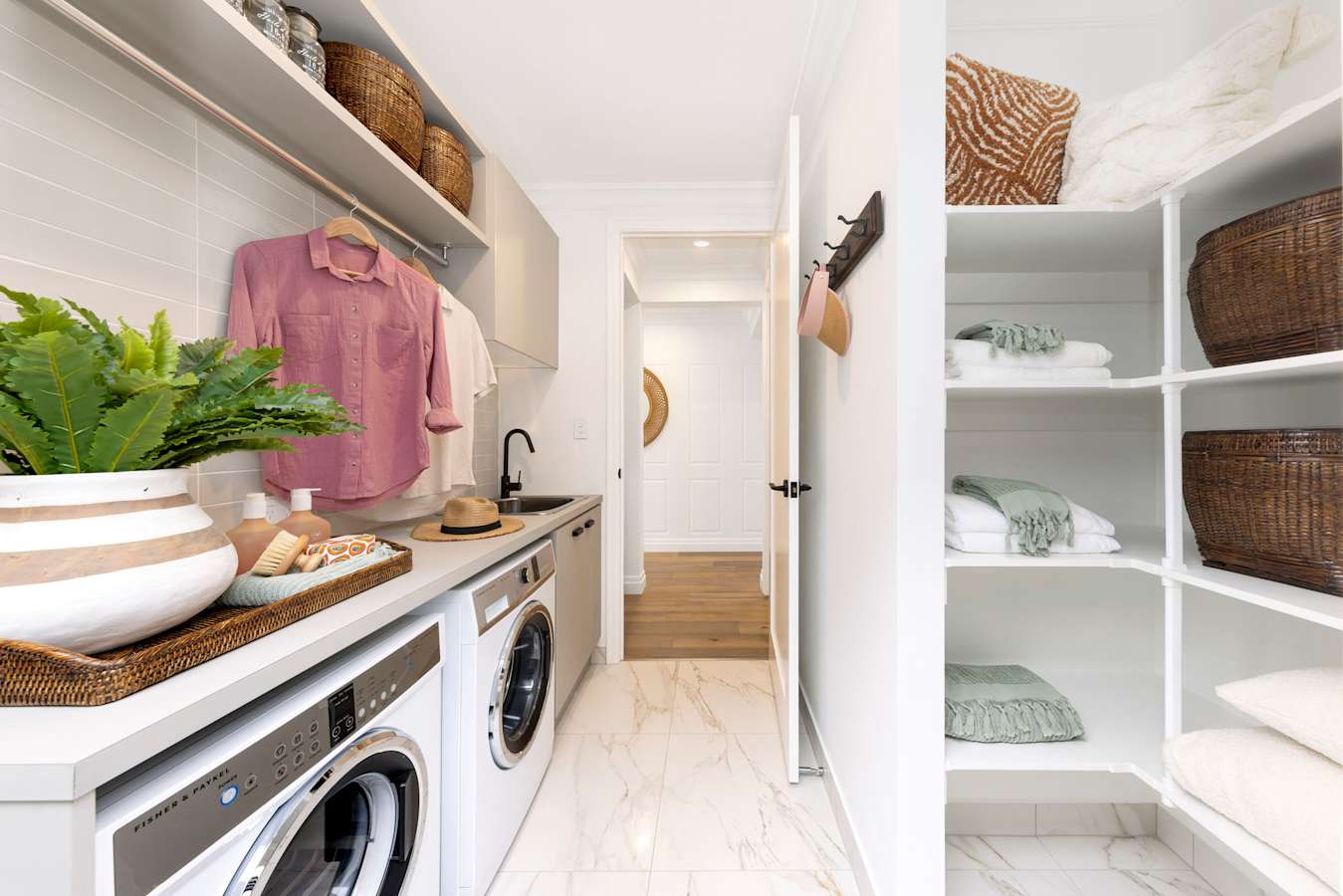

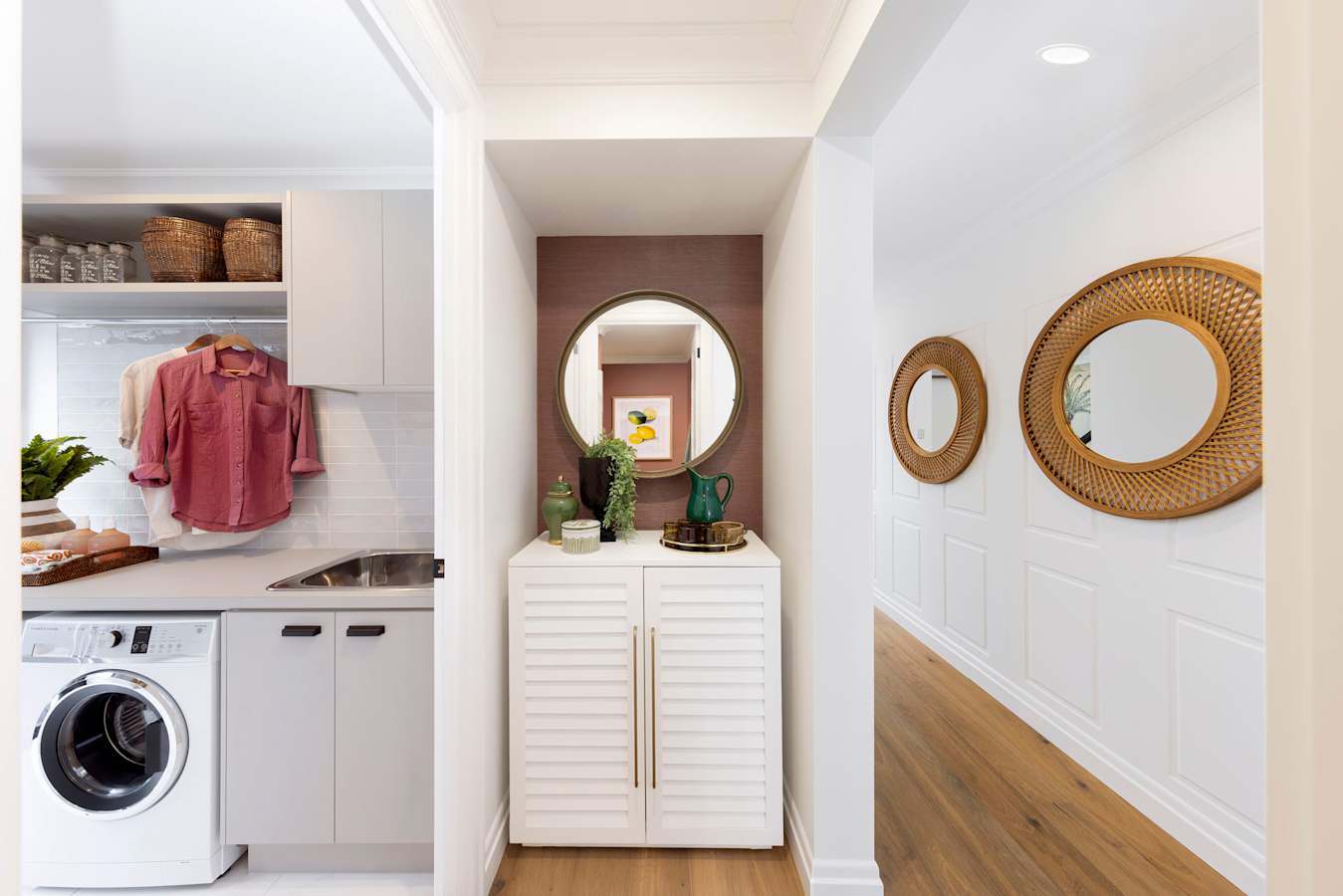

Grayson 33 home design laundry
Grayson 33 home design laundry

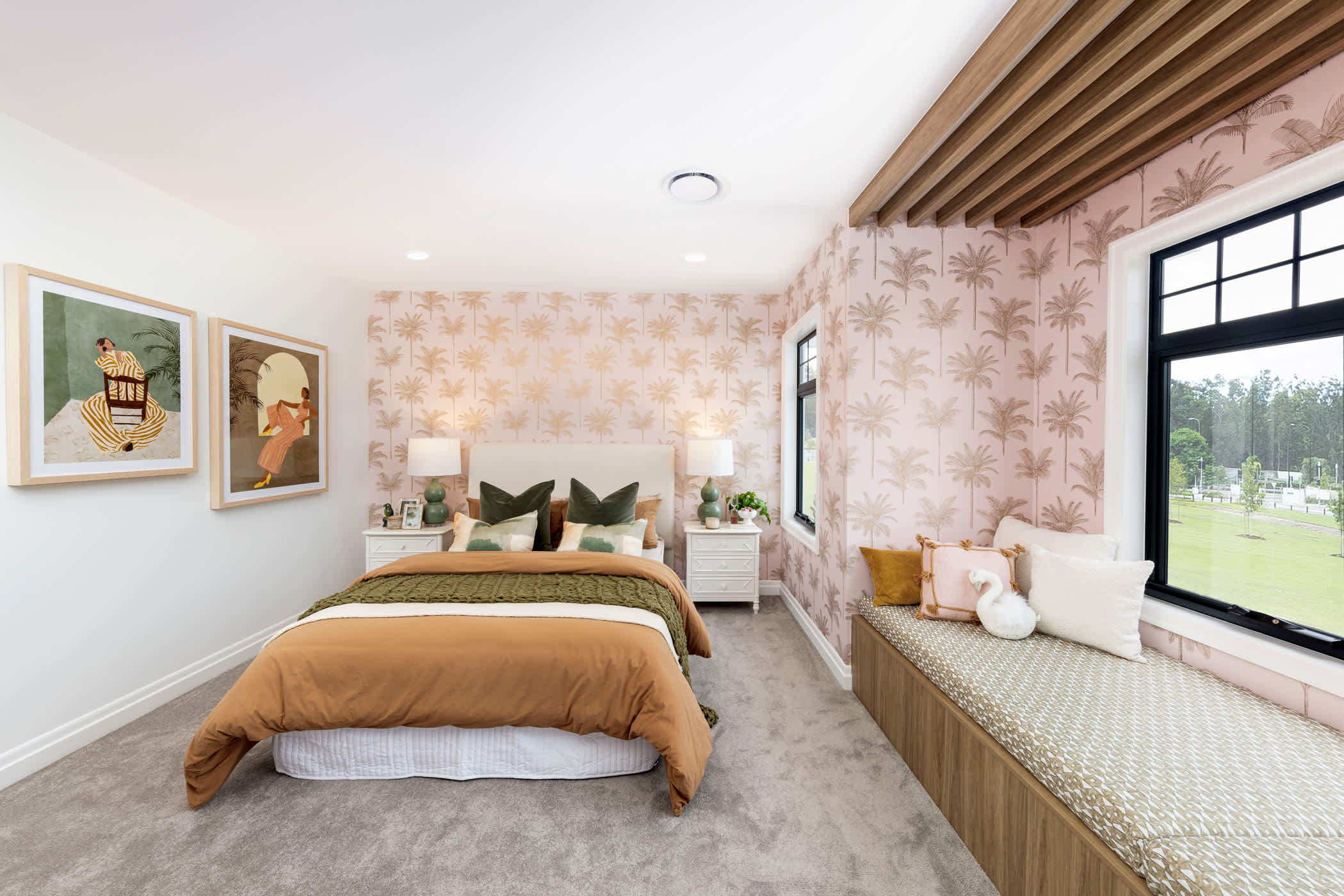

Grayson 33 home design bedroom
Grayson 33 home design bedroom

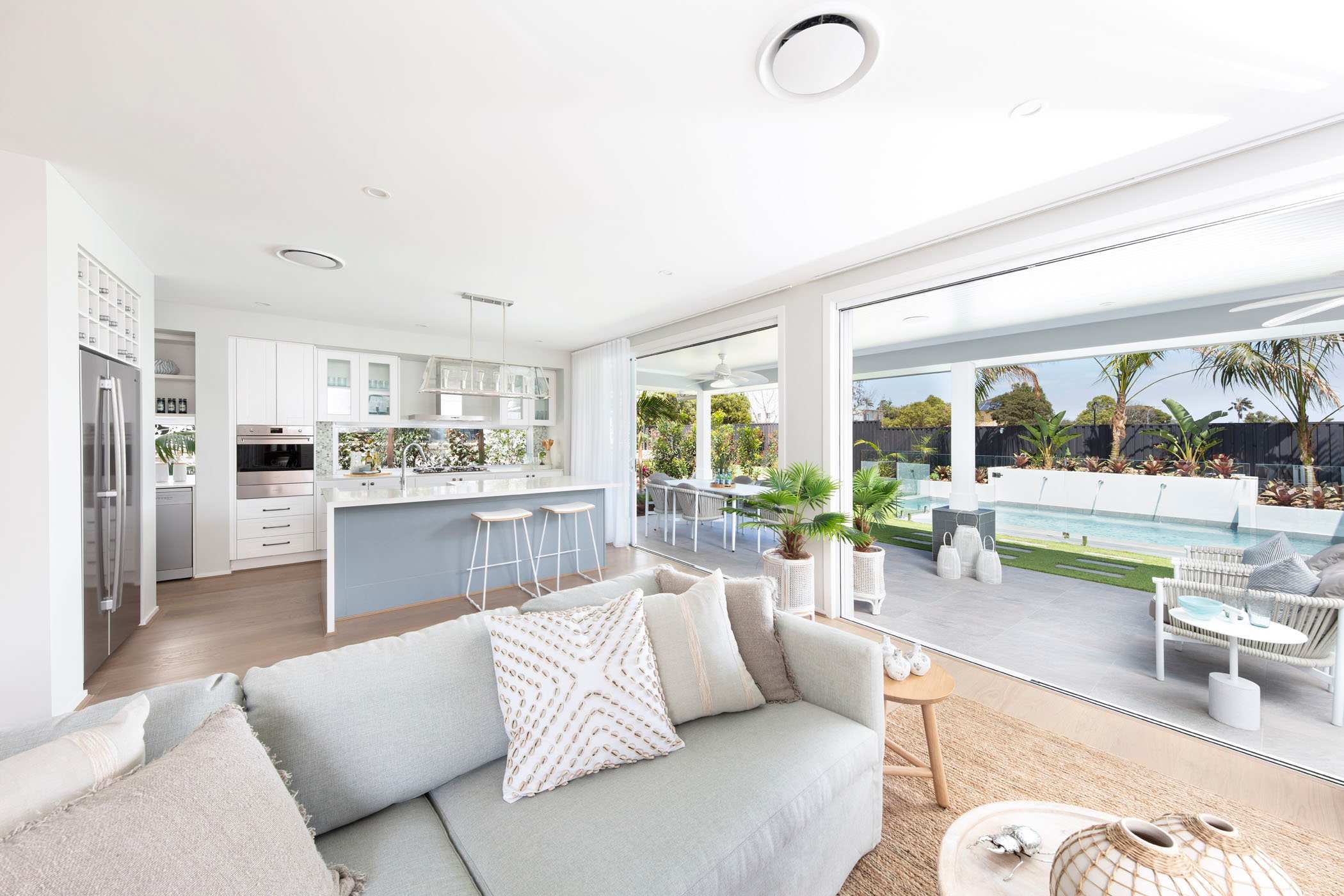

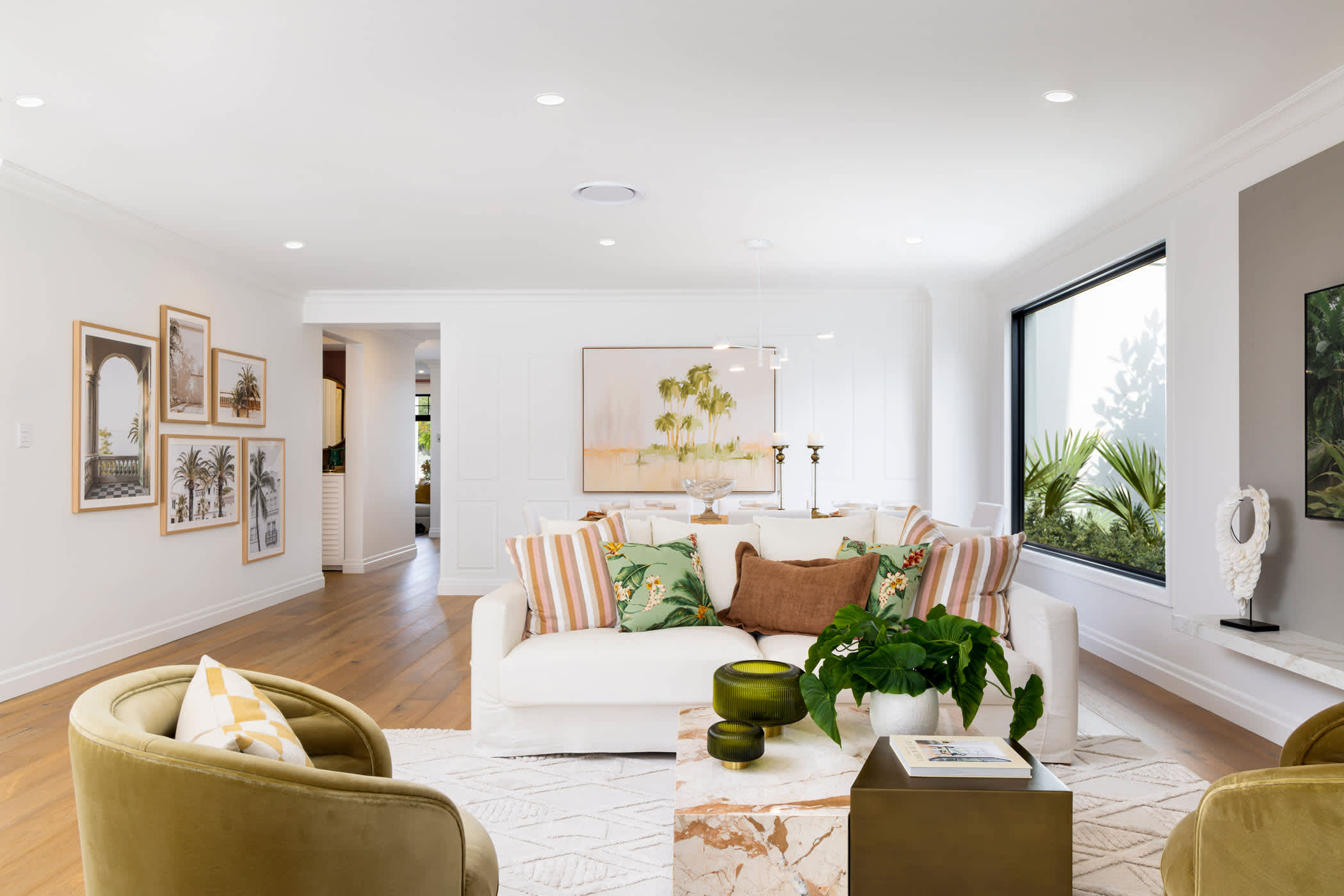

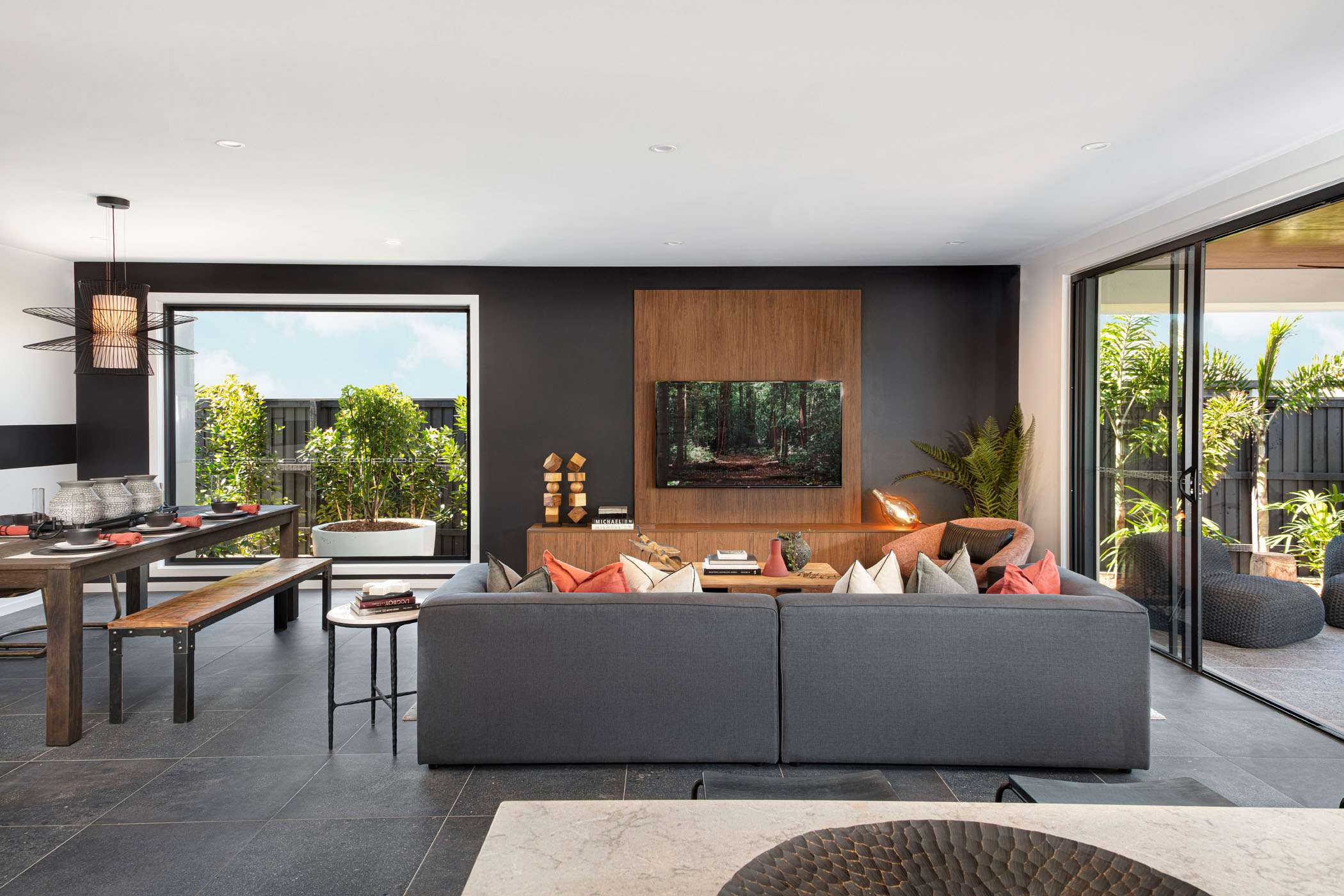

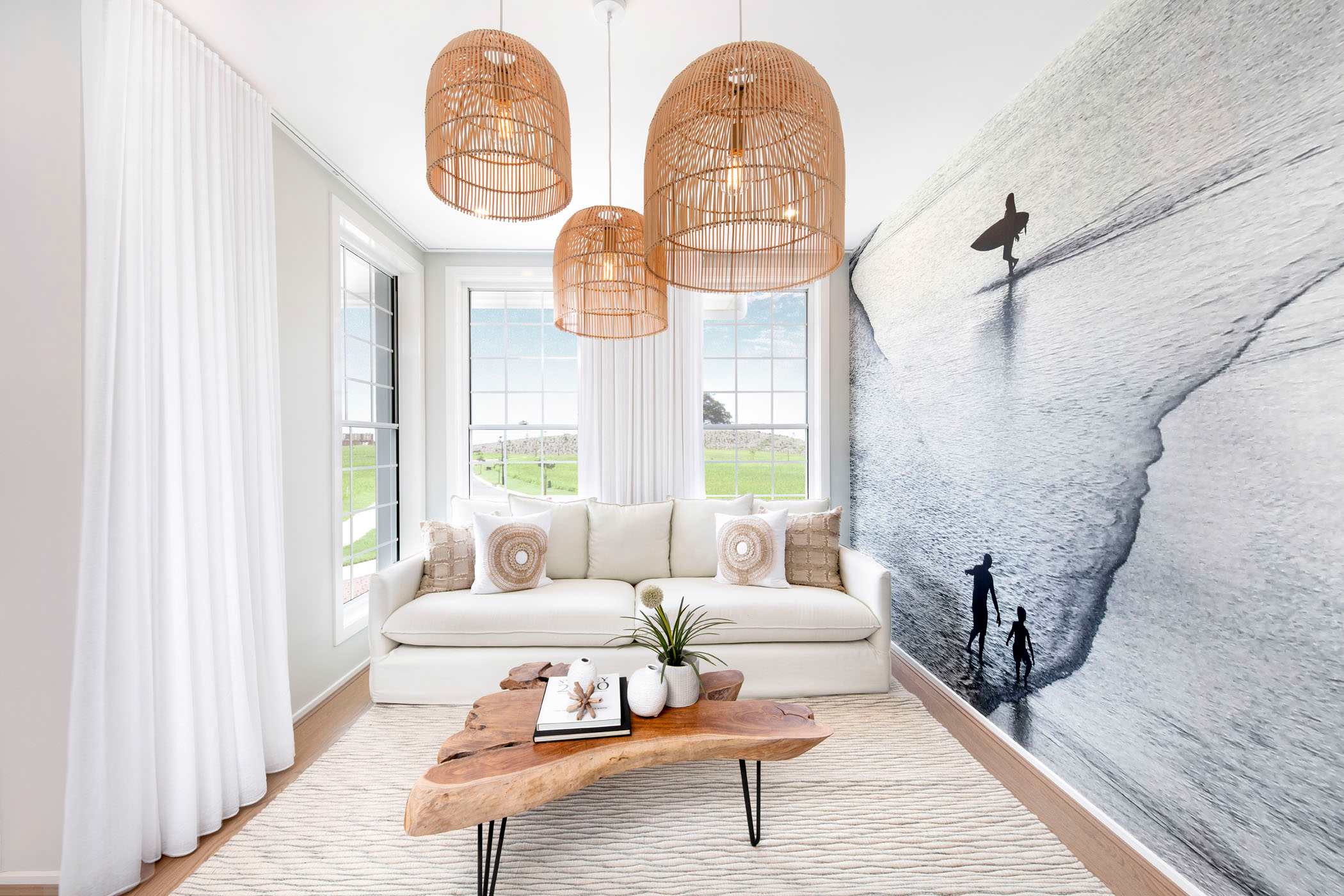

Grayson 33 home design living room
Grayson 33 home design bedroom

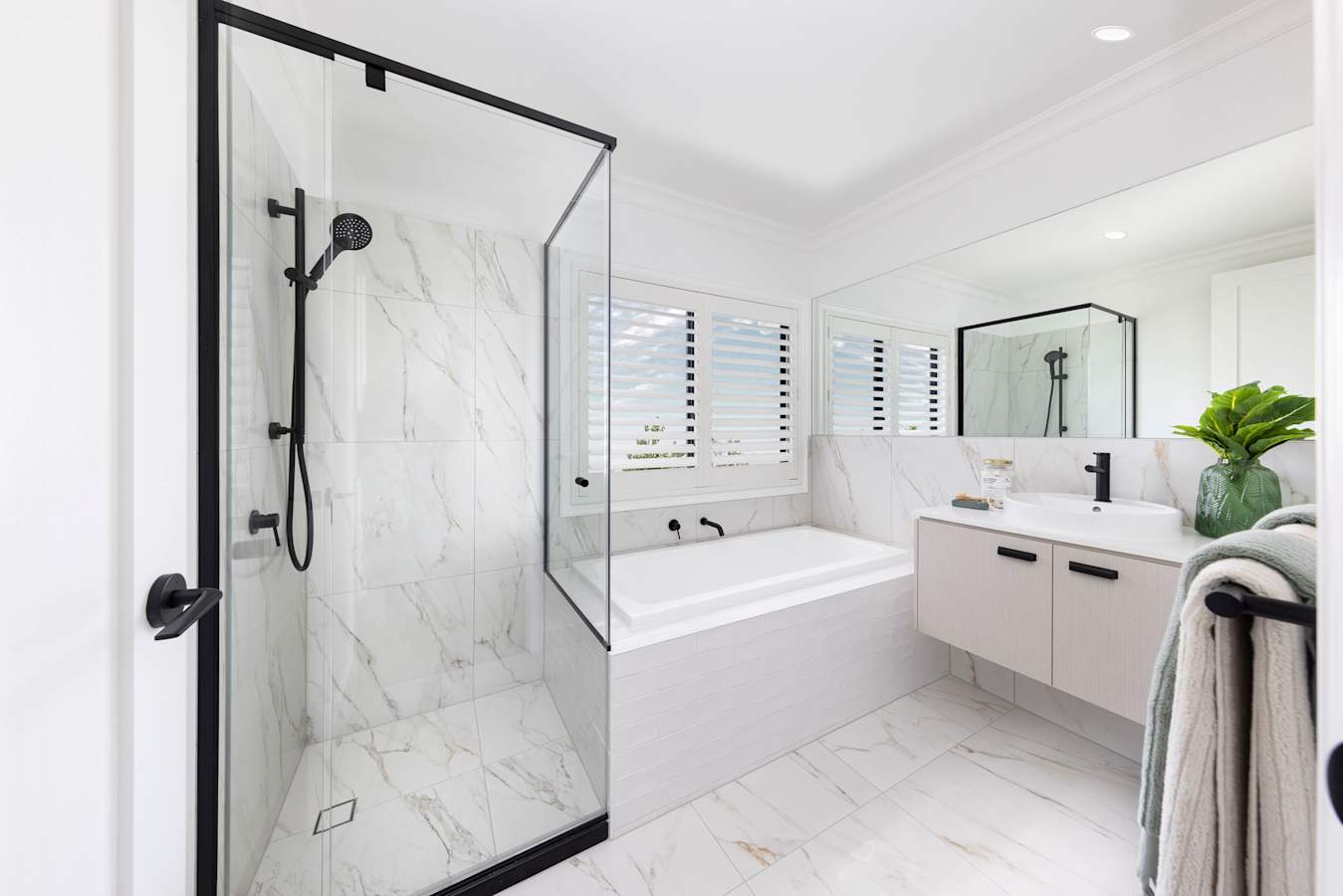

Grayson 33 home design bathroom
