Grace

Select your floorplan

All measurements are displayed in Studio Collection floorplans portray the Harlo Facade. Floor plans will differ slightly with other facade options.

Studio Collection

14m

Studio Collection

Grace

14m

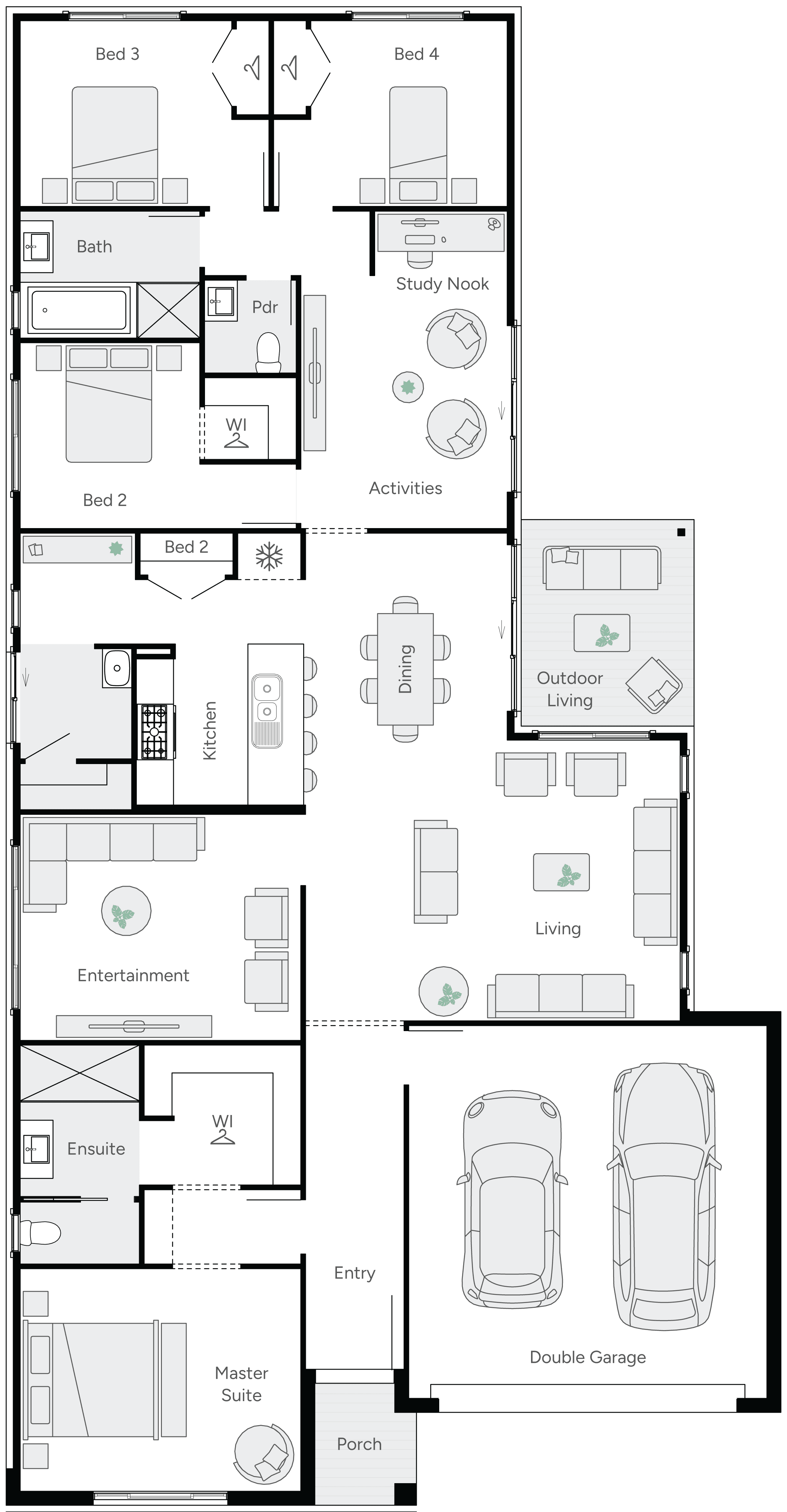

House Dimensions

House Width: 12.5m House Depth: 24.2m Total: 247.8m²

Floorplan Options

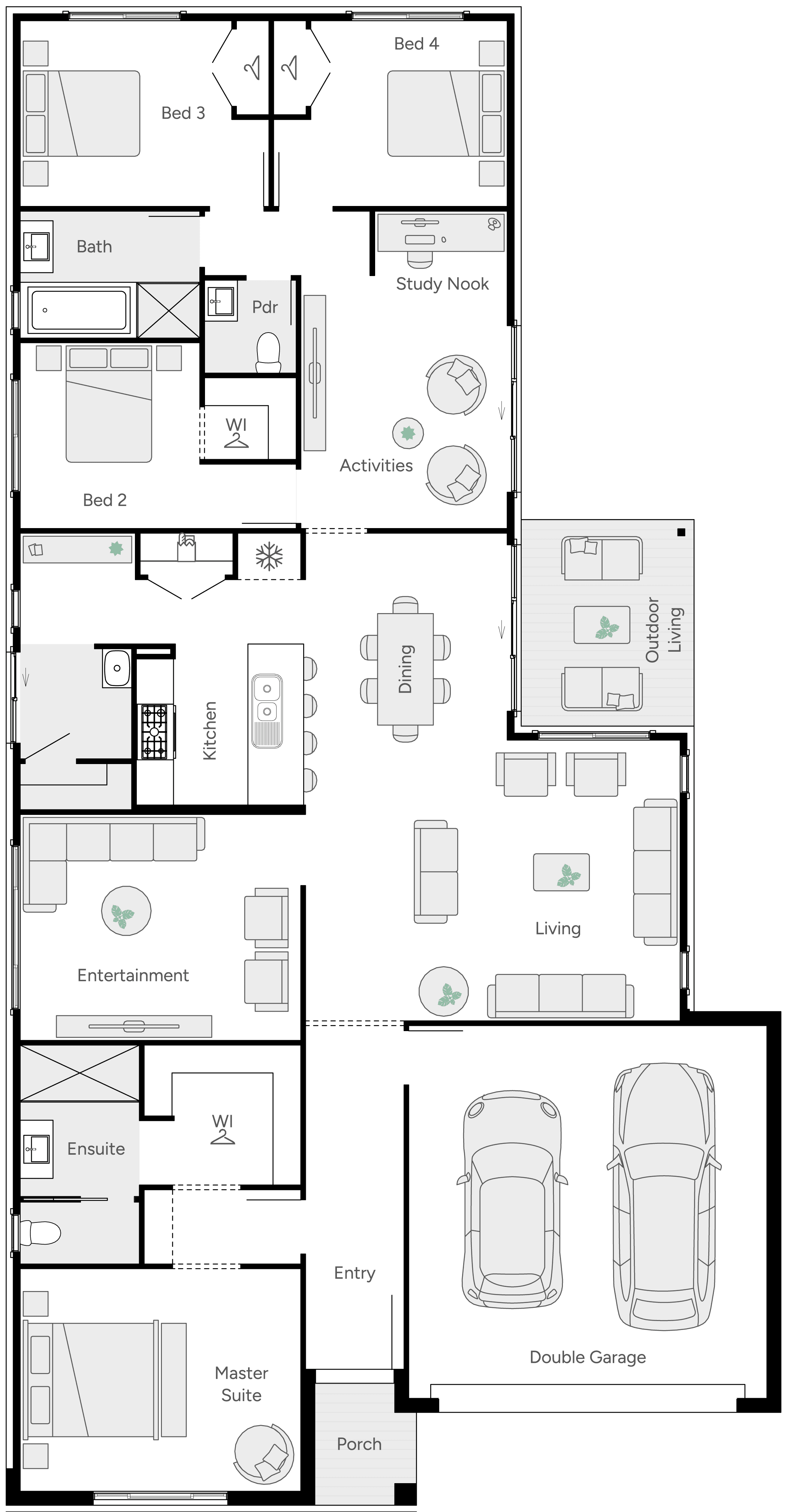

Room Dimensions

Meals

3.3m x 3.3m

Family

6m x 4.5m

Master Suite

4.5m x 3.6m

Bed 2

2.9m x 3m

Bed 3

4m x 3m

Bed 4

3.8m x 3m

Activities

3.3m x 4.1m

Entertainment

4.5m x 3.7m

Study Nook

2.1m x 1m

Double Garage

5.8m x 6m

Outdoor Living

2.8m x 3.3m

Porch

1.6m x 2m

Select your facade

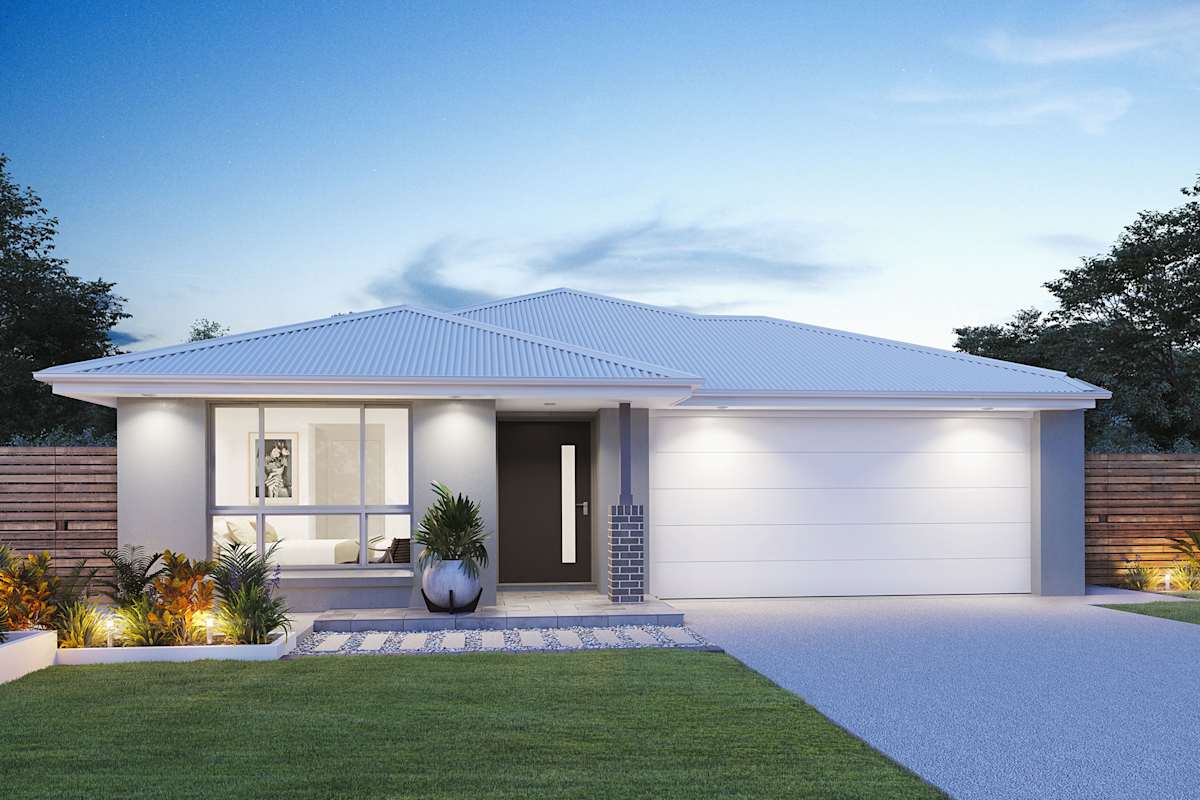

The Harlo façade for Studio Collection is the standard no cost facade. All other facades are upgrade options and available at an additional cost. Images of facades shown are to be used as a guide only and may contain upgrades such as feature bricks, render, cladding, roofing, feature tiles, feature paint and upgraded garage and front doors. Material finishes shown are purely an expression of the artist and are available at additional costs. Facades shown are a style only and may differ depending on the house type chosen. Please refer to our current price list and specifications for facade finishes allowed in base price and speak with your Building & Design Consultant for specific drawings on your chosen house type and facade.

01 / 09

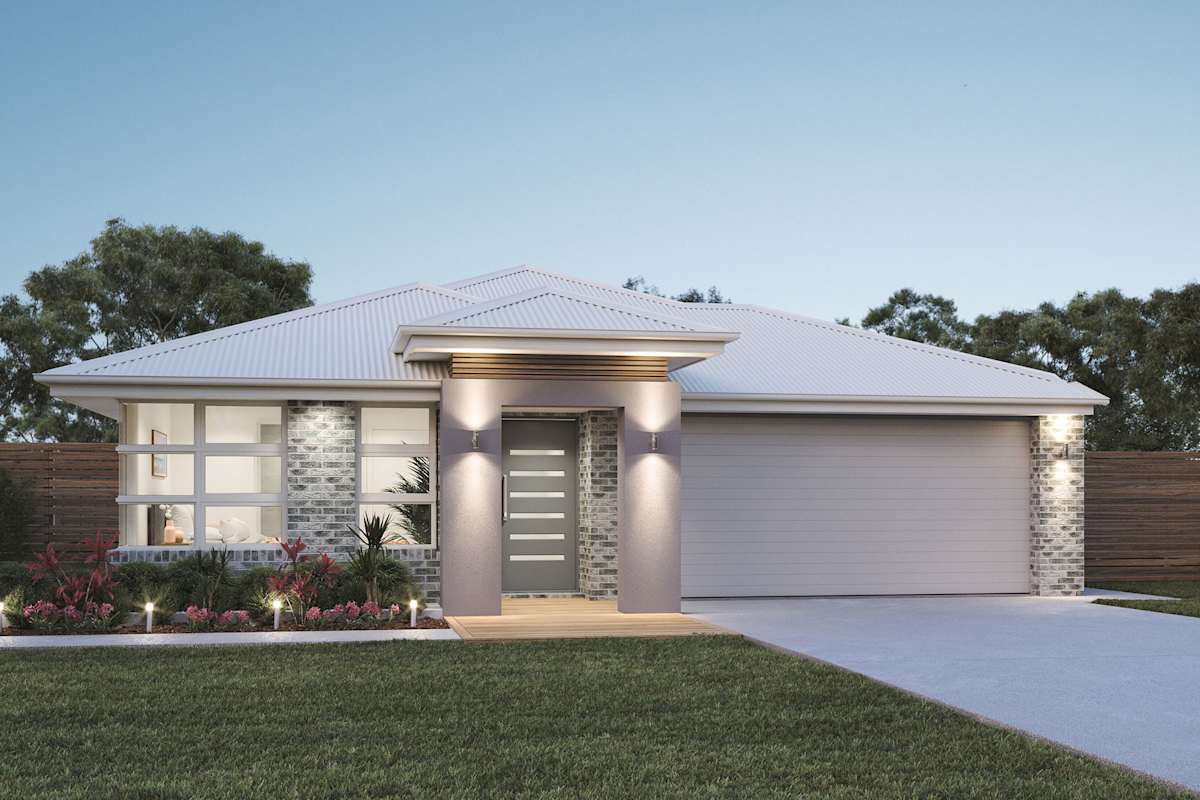

Cedric Facade

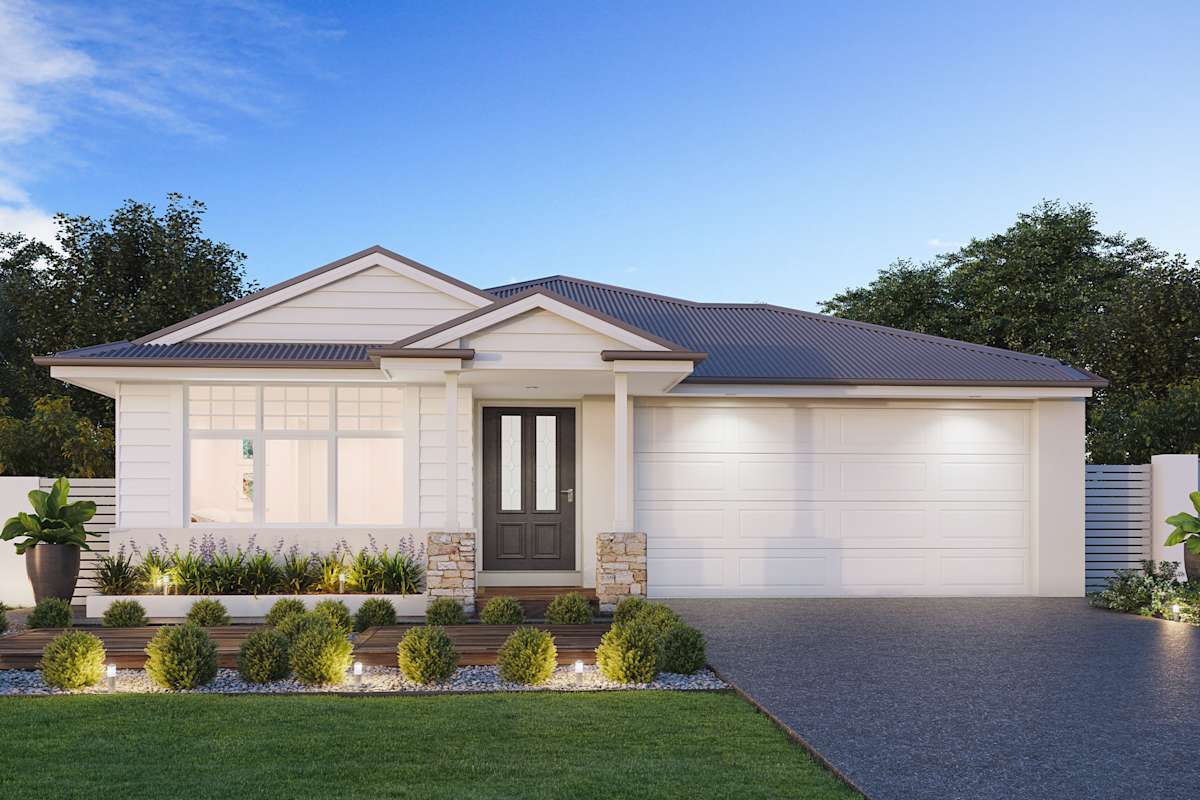

Hampton Facade

Jett Facade

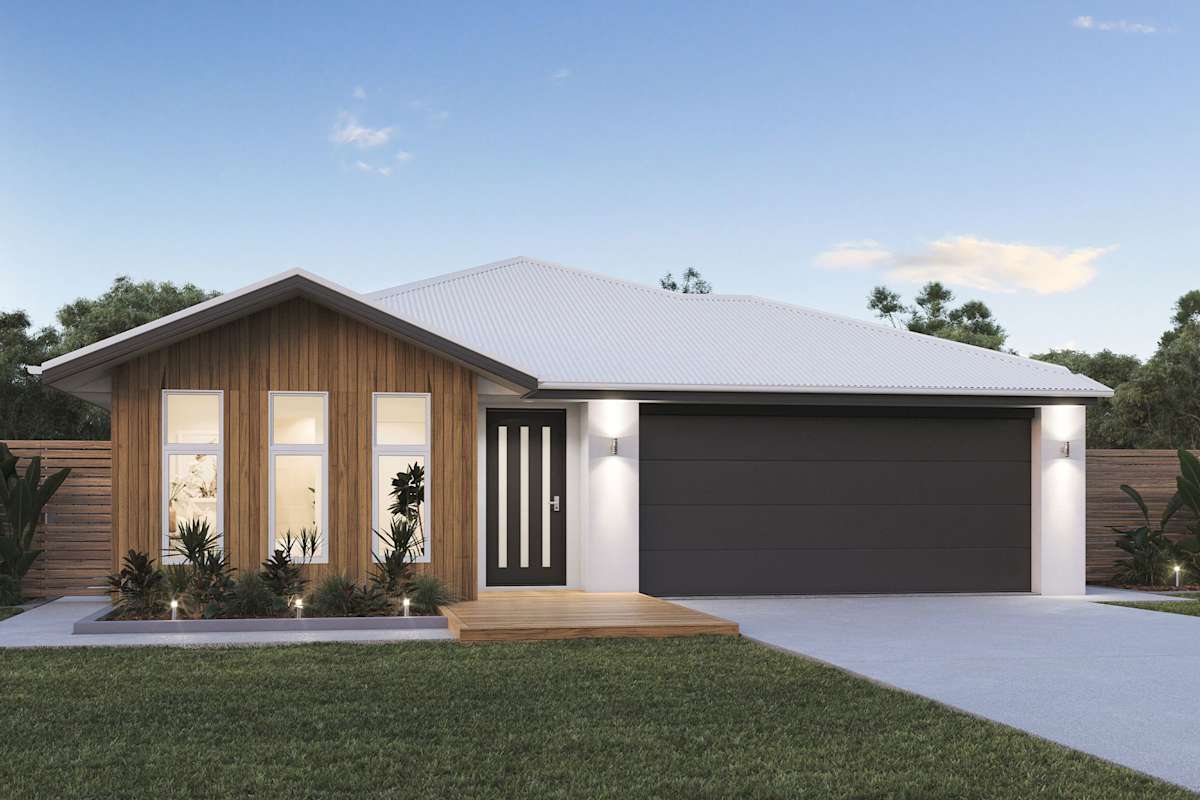

Levi Facade

Quinn Facade

Roxton Facade

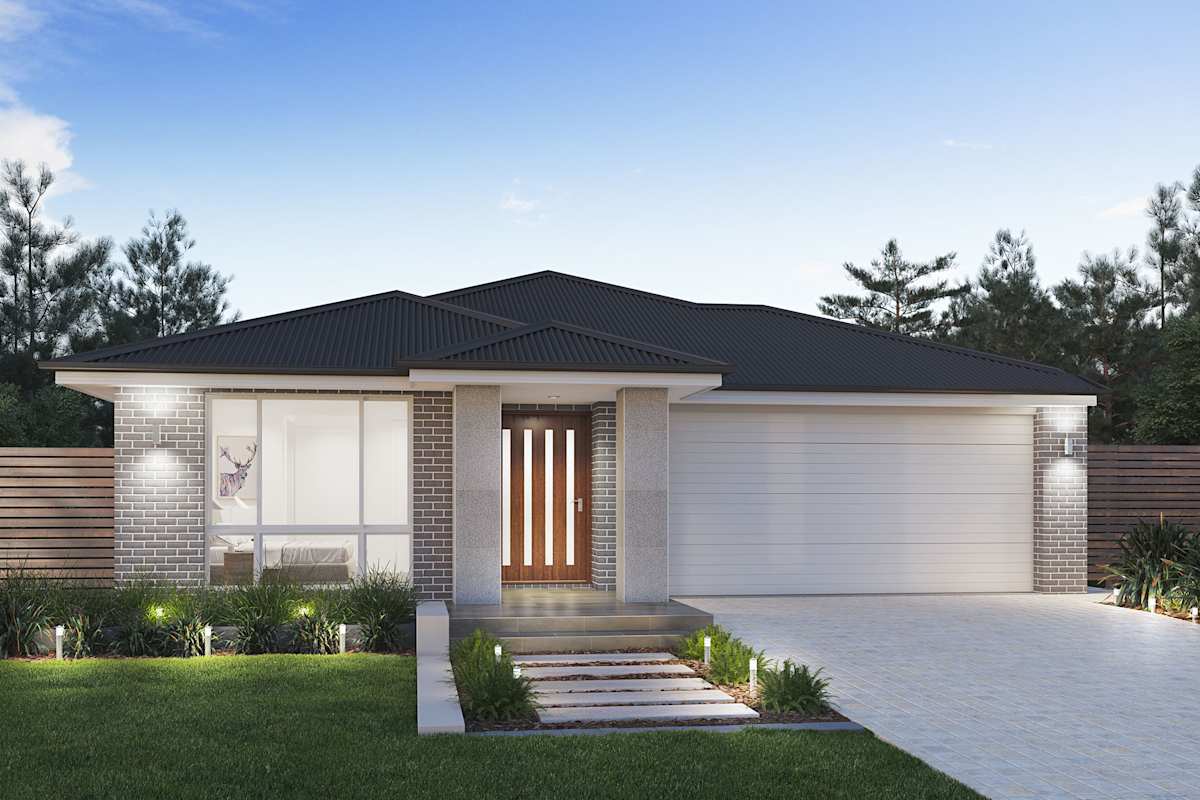

Saxon Facade

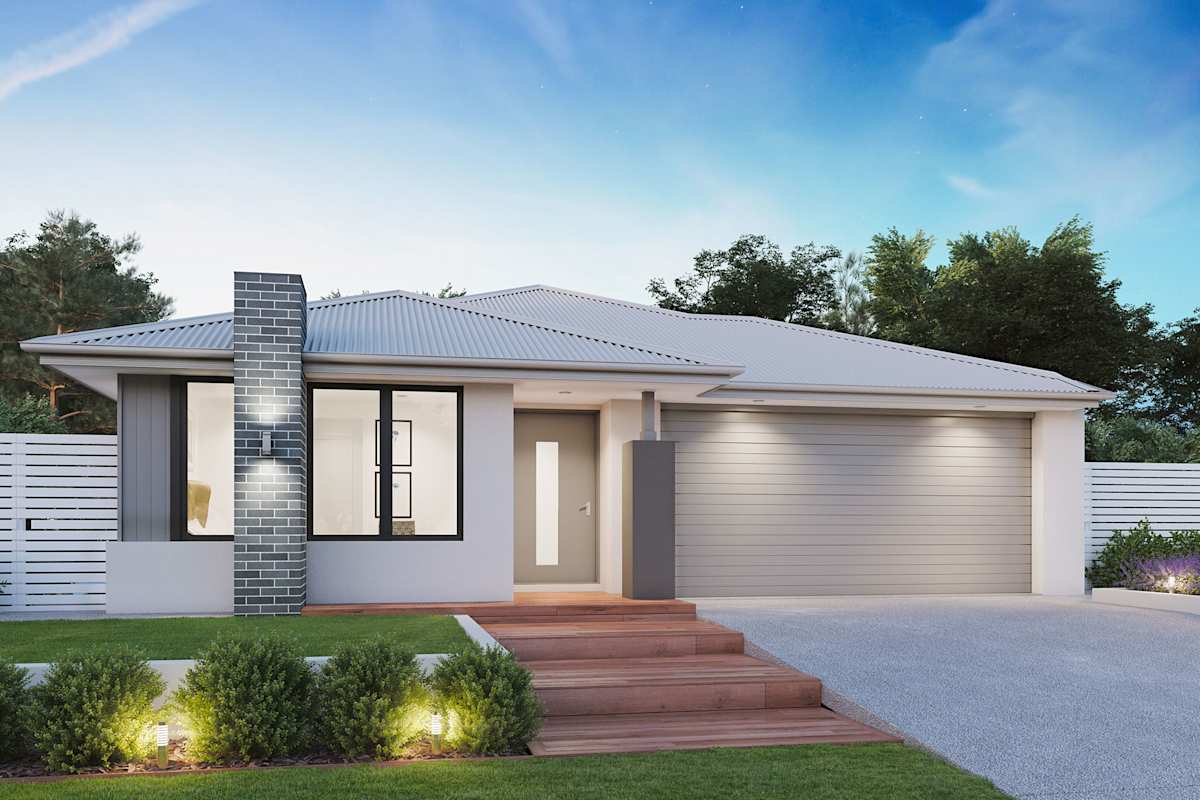

Zaylee Facade

Harlo Facade

Your inclusions

Better with Brighton

4 zone reverse cycle ducted air conditioning.
Houseframe made from TrueCore steel.
A choice from a wide range of quality tiles throughout your entry, kitchen, and living areas, with carpet through all bedrooms, entertainment rooms, study / home office and upstairs (design specific).
3.5kW Solar System with Tier 1 Jinko Panels and a 3kW SolaX Inverter.

MyChoice Design Studio

Full colour & electrical consultation at MyChoice Design Studio.

Earthworks & Connections

Maximum of 500mm fall over building platform, made up of 250mm equal cut/fill.
Blocks up to 640sqm include underground power, sewer, stormwater, and water connection to specific points up to 8 lineal metres from mains connection point.
S class slab.

Framing & Roof Construction

Colorbond steel roofing includes 22.5 degree pitch (includes N2 wind rating).
Quad fascia & gutter available in Colorbond colours.

Facade & External Finish

Harlo facade with a wide choice of face brick colours to front, sides and rear skirt with natural mortar joint and vertical lightweight cladding above brick skirt.
Sectional overhead automatic garage door available in 5 different profiles with 20+ colours. Includes 2 remotes and 1 wall controller.

External Doors & Windows

1200mm wide x 2040mm high paint grade front door with clear glass inserts from the Newington range or the Nexus 40.
Gainsborough Trilock Contemporary door furniture in satin or bright chrome to front entry door.
Aluminium powder coated key lock windows and sliding doors.

Kitchen

20mm stone benchtop - a range of colours available with 16mm shadowline below.
2 portrait door overhead cupboards to either side of range hood including bulkheads and shadowline.
Kitchen cabinetry includes one laminate colour. Choose from a wide range of laminate colours.
Choose from a wide range of handles from the Hettich or Kethy range.
Soft close throughout.
Pot drawer to below microwave space (design specific).
Base MK3 1&3/4 bowl stainless steel sink (overmount).
Mizu Drift Mk2 Gooseneck chrome sink mixer.
Tiled splashback to rear of kitchen only and sits at approx. 700mm high.
Haier 90cm stainless steel freestanding cooker.
90cm stainless steel ducted canopy rangehood.
Provision for microwave & dishwasher only.
Pantry includes 4 white melamine shelves.
1 gas point included for natural gas or LPG bottles (LPG bottles excluded).

Laundry

Base laundry trough and cabinet in white.
Posh Bristol Mk2 chrome sink mixer.
2100mm high aluminum glass sliding door (plan specific).
Splashback tiling to 300mm or 1 tile high over laundry cabinet.
100mm high skirt tile.

Bathroom & Ensuites

20mm stone benchtop - a range of colours available with 16mm shadowline below.
Laminate double portrait door floor mounted vanity – 1 laminate colour only, with shadowline and kicker. Choose from a wide range of laminate colours.
Soft closers to vanity doors.
Choice of a wide range of handles from the Hettich and Kethy range.
The Gap Semi Inset Basin with taphole and universal basin push plug.
Mizu Drift Mk2 Basin Mixer, Mizu Drift Mk2 Shower/Bath Mixer, Mizu Drift Mk2 Bath Spout all in chrome.
Decina Metro island bath with tiled hob surround (size design specific).
Posh Solus Round Close Coupled Toilet Suite.
Mizu Drift accessories: single towel rail to bathroom, 2x towel hooks to ensuite, toilet roll holders to all toilets.
Semi frameless shower screen with slimline stainless steel hob angle.
Posh Bristol Rail Shower to all showers.
Square chrome floor waste to shower recess.
Contemporary frameless mirror to all vanities. Width to match vanity and extend over bath if applicable.
Wide selection of ceramic tiling to wet areas (up to 450x450) selected from MyChoice Studio.
300mm high splashback to vanities with mirror on top.
300mm tiles over bath to underside of window.
100mm tile to remainder of skirts and separate WC areas.
Externally ducted exhaust fans (where required for NCC compliance). Includes Ventair run on 10 minute timer.
NCC Compliant shower includes stainless steel angle with maximum 5mm tile stepdown which includes 70mm slab or floor recess to shower only.

Powder Rooms

20mm stone benchtop - a range of colours available with 16mm shadowline below.
Double portrait door laminated floor mounted vanity. Choose 1 colour from a wide range of laminate colours.
Choice of a wide range of handles from the Hettich & Kethy range.
Soft close throughout.
The Gap Semi Inset Basin with taphole and universal basin push plug.
Mizu Drift Mk2 Basin Mixer
Contemporary frameless mirror. Width to match vanity.
Posh Solus Round Close Coupled Toilet Suite.
Wide selection of ceramic tiling to wet areas (up to 450x450) selection from the MyChoice Studio.
300mm high splashback to vanities with mirror on top.
100mm tile to remainder of skirts.
Hand towel ring.
Externally ducted exhaust fans (where required for NCC compliance).

Internal Finishes

3 coat Taubmans ‘Endure’ paint system to all internal walls. Choose 1 colour from a choice of 100+ colours.
2 coat Taubmans Ultimate Enamel paint system to skirts, arches and doors. Choose 1 colour from a choice of 100+ colours.
2 coat flat acrylic finish to ceiling.
2040mm high Flush panel doors throughout including robes and linen.
Gainsborough Internal Lever set from G4 series (chrome or satin) throughout. Excludes privacy locks.
Cushioned door stops to all internal doors (excludes robes and linens).
67mm skirting and 42mm architrave throughout.
Linen includes 4x deep white melamine shelves.

Ceiling

2440mm ceiling height with 75mm cove cornice

Stairs

Carpet grade staircase to treads and risers including painted timber grade stringer, handrail and posts.
Matt black or satin silver powder coated balusters in either round or square profile.

Outdoor Living

Fully lined plaster ceiling with painted timber beading to outer edge to Outdoor Living and porch.
2100mm high sliding doors to outdoor living - design specific.

Electricals

1 double power point to each habitable room including garage (single to fridge, microwave space, dishwasher, rangehood and garage door).
1 light point with batten holder and bulb per room.
Clipsal Iconic light switches in Vivid White.
1 downlight to front porch, one batten holder with bulb to outdoor living and one batten holder and bulb external to the laundry (single flood light where no eaves).
Externally ducted exhaust fans (where required for NCC compliance). Includes Ventair run on 10 minute timer.
1 TV point to singles, 2 to double storey (cable run to ceiling for future antenna).
1 phone point (if NBN available phone point will be in garage with NBN provision).
Hard wired smoke detectors compliant with legislation.
1 x pack of 10 No. white LED Downlights throughout.
Ceiling fans throughout the house to all living areas, bedrooms and Outdoor Living (design specific), excluding dining room and study nook.
1200mm white 4 blade to single storey
1400mm white 4 blade to double storey

Plumbing

250L Electric Everhot by Rheem.
Two externals taps - one to front and one to rear.

Energy Efficiency

R3.0 insulation batts to ceiling including outdoor living & garage (excluding eaves).
R2.0 wall batts to the garage/house internal wall of a double storey home only.
Wall wrap and R2.0 wall batts to all external lightweight cladded walls
Wall wrap and R2.0 wall batts to all brick veneer walls of double storey homes only.
Wall wrap only to all brick veneer walls of a single storey home.
Anticon Blanket to double storey homes only.
Winddriven roof ventilator 300mm with eave vents.

Termite Protection

Termite barrier system to Australian Standards 3660.1

General Items

Contour survey, soil report and engineers slab design.
QBCC Insurance fees (calculated on base price).
Q Leave Insurance Fees (calculated on base price).
Pricing applies to homes built within the Brisbane City Council area only.
Additional fees may apply for construction within other local authorities.
HIA ‘Peace Of Mind’ building contract.
