Select your floorplan

Brighton Black floorplans portray the included façade. Floor plans will differ slightly with other facade options.


Brighton Black

43A

4
4
0
3
2
14m

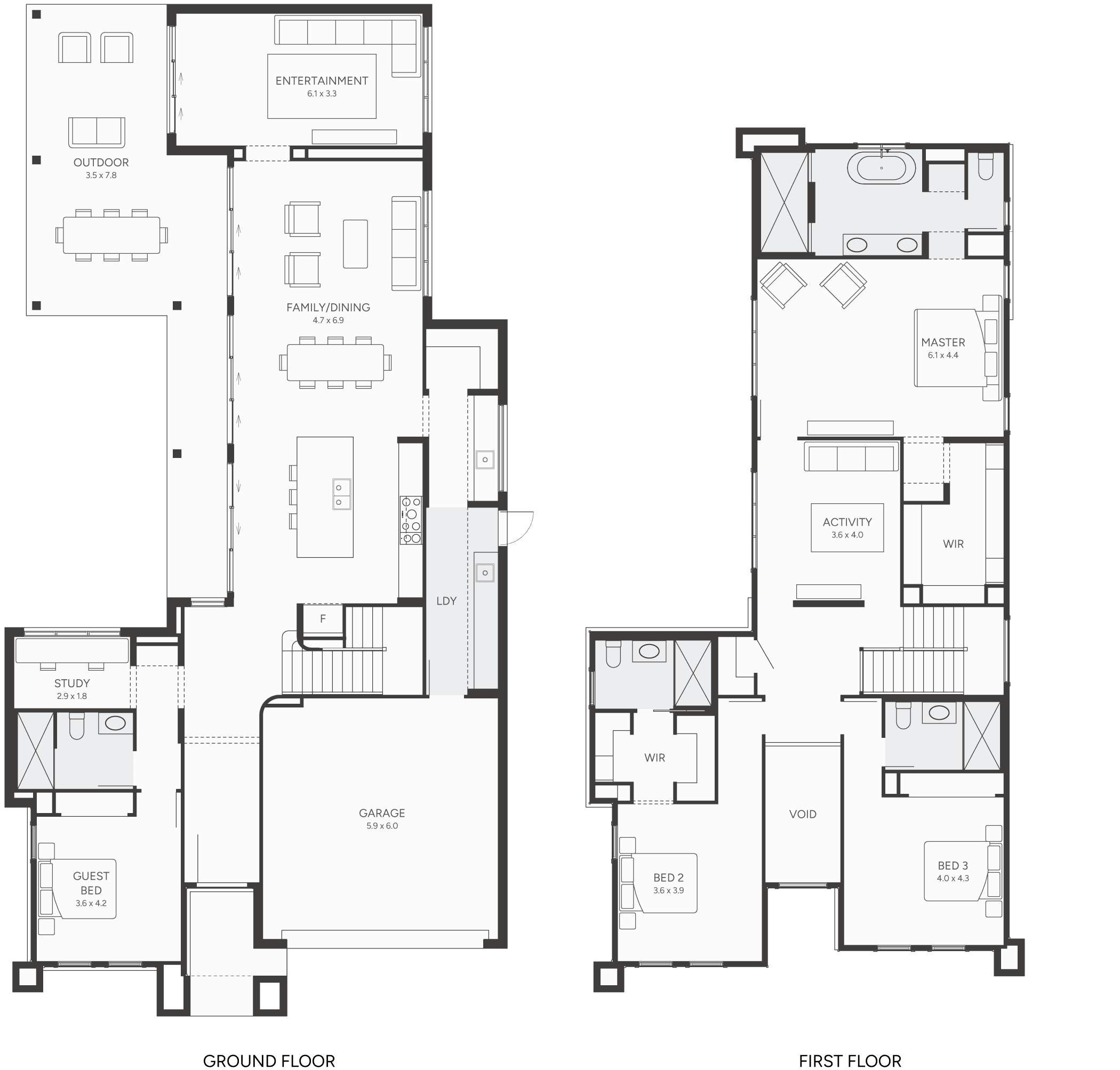

BLK 43A Double Storey House Design Floor Plan
Brighton Black

43A

4
4
0
3
2
14m
House Dimensions
House Width: 12.5m House Depth: 25.1m Total: 403.7m²
Room Dimensions
Dining
4.7m x 6.9m
Living
4.7m x 6.9m
Master
6.1m x 4.4m
Bed 2
3.9m x 3.9m
Bed 3
4.0m x 4.3m
Guest Bed
3.6m x 4.2m
Entertainment
3.6m x 4.0m
Study
2.9m x 1.8m
Outdoor
3.5m x 7.8m
Garage
5.9m x 6.0m
Porch
1.6m x 3.1m
Activity
3.6m x 4.0m

Your inclusions

Better with Brighton
  • 4 zone reverse cycle ducted air conditioning with anywAiR premium touch pad.
  • House frame made from TrueCore steel.
  • A choice of ceramic tiles (up to 600x600) throughout your entry and living areas, with luscious carpet through all bedrooms, entertainment rooms, study/home office and upstairs.
  • 6.6kW solar system with tier 1 Jinko panels and a 5kW SolaX inverter.
MyChoice Design Studio
  • Full Interior design consultation in the MyChoice Design Studio.
Earthworks & Connections
  • Maximum of 500mm fall over building platform, made up of 250mm equal cut/fill.
  • Blocks up to 640sqm include underground power, sewer, stormwater, and water connection to specific points up to 8 lineal metres from Mains connection point.
  • S class slab.
Framing & Roof Construction
  • Colorbond steel roofing (Includes N2 wind rating).
  • Quad fascia and gutter available in Colorbond colours.
Facade & External Finish
  • Rendered brickwork finish, refer to master plan.
  • Sectional overhead automatic garage door available in several profiles with 20+ colours. Includes remotes.
  • Lightweight cladding (Axon) to first floor sides and rear and as per working drawings, refer to master plan.
External Doors & Windows
  • 1200mm wide x 2400mm high stained or painted timber front entry door with fixed glass panel - Corinthian Pivot INFWS 5VG Merbau with clear glazing (as per master plan).
  • Gainsborough G4 Series back to back Oblong 600mm Pull Handle with Rolling Mortice Lock Entrance Set in Stainless Steel.
  • Flush panel external door to garage with Gainsborough Internal Lever set from the Alba Series (chrome or satin) with deadlock (as per master plan).
  • Aluminium powder coated, key lock windows and sliding doors.
Internal Finishes
  • 3 coat Taubmans ‘Endure’ paint system to all internal walls.
  • Flat acrylic finish to ceiling. Ultimate enamel to skirts, arches & doors.
  • 2340mm extra high flush panel doors throughout including robes and linen.
  • Gainsborough Internal Lever set from Alba series (chrome or satin) throughout with privacy locks to master suite, powder rooms and main bathroom.
  • Gainsborough 6209 Magnetic Skirting Mounted Doorstop in Satin Chrome (wet areas to be floor mounted).
  • 138mm x 11mm Single Bevel pine skirting and 66mm x 11mm architrave throughout, except wet areas which have 66mm x 18mm arches.
  • All bedroom robes include a white melamine shelf and hanging rail.
  • Linen includes 4x deep white melamine shelves.
Laundry
  • 40mm edge Caesarstone benchtop (length is house design specific) with a shadowline below benchtop.
  • Soft close portrait doors with bevelled edge to under bench with washer/dryer space, including kickboard.
  • Double open box overhead shelving.
  • Choose from a wide range of laminate colours (choice of 2 colours).
  • Tiled splashback to underside of open shelving and a 100mm tiled skirt.
  • Afa Flow 388 Stainless Steel Undermount Laundry Tub.
  • Milli Pure Progressive Sink Mixer Tap with pull out spray in chrome.
Kitchen
  • Overhead cupboards to kitchen including bulkheads with a shadowline.
  • 40mm edge Caesarstone to kitchen benchtop and island bench with a shadowline below benchtops.
  • Kitchen cabinetry including two laminate colours with bevelled edges and soft close to all drawers and portrait doors. Finger pull and soft close to overheads.
  • Pot Drawers (1 bank of 2 high) to cook top run (max. 900 wide) with portrait doors to island including pull out bin. Combination of full portrait doors and 60mm floating shelf to overheads with concealed rangehood (as per master plan).
  • Double stainless steel undermount kitchen sink with polished stone edge.
  • Single stainless steel undermount sink with polished stone edge to butler’s pantry.
  • Milli Pure Progressive Sink Mixer Tap with pull out spray in chrome to kitchen and butler’s pantry.
  • Tiled splashback to rear of kitchen only and sits at 700mm high.
  • Fisher & Paykel 1x Integrated French Door Fridge Freezer with choice of cabinetry handle with fixed panel above.
  • Fisher & Paykel 1x 90cm Induction / Gas Hybrid Cooktop + 1x 30cm Induction Cooktop.
  • Fisher & Paykel 2x 90cm Underbench Ovens.
  • Fisher & Paykel 90cm Concealed Rangehood.
  • Fisher & Paykel 60cm Combination Microwave Oven.
  • Fisher & Paykel 1x Integrated Double Dish Drawer + 1x Single Tall Tub with choice of cabinetry handle.
  • 1 point included where natural gas is available.
Bathroom & Ensuites
  • Laminated, soft close double portrait door floating vanity unit with bevelled edges.
  • 20mm Caesarstone vanity benchtop with a shadowline below.
  • Venice 500 Semi Inset Basin in white with chrome universal popup waste.
  • Milli Pure tapware ranges to vanity mixer taps, shower/bath mixer and bath spout in chrome.
  • Kado Lussi cast solid surface freestanding thin edge bath in white to master ensuite.
  • Posh Domaine back to wall freestanding bath 1500mm or 1700mm to main bathroom/guest ensuite (as per master plan).
  • Kado Lux Close Coupled Back to Wall Rimless Overheight Bottom Inlet Toilet Suite with Thin Soft Close Quick Release Seat with concealed built in toilet to downstairs.
  • Milli Mood Accessories in chrome. Includes single towel rail or towel hook (up to 2) to main bathroom and secondary ensuites. 2x single towel rails to master ensuite. Toilet roll holder to all toilets. 300mm guest towel rail to powder rooms.
  • 10mm frameless shower screen with slimline stainless steel hob angle.
  • Milli Pure Twin handheld shower on rail to master ensuite and Milli Pure Single handheld shower on rail to main bathroom and guest bathrooms.
  • Smart tile floor wastes throughout in chrome.
  • Contemporary frameless mirror to all vanities.
  • Wide selection of ceramic tiling to wet areas (up to 600x600 to floors, up to 600x300 to walls) selected from MyChoice Design Studio range. Full height tiling to master ensuite. All other bathrooms/ensuites and powder rooms have 300mm high splashback to vanity and bath with 100mm skirt to remainder.
  • Externally ducted exhaust fans (where required for NCC compliance). Includes Ventair run on 10 minute timer.
  • NCC Compliant shower includes stainless steel angle with maximum 5mm tile stepdown which includes 70mm slab or floor recess to shower only.
Powder Rooms
  • Laminated, soft close double portrait door floating vanity unit with bevelled edges.
  • 20mm Caesarstone vanity benchtop with a shadowline below.
  • Venice 500 Semi Inset Basin.
  • Milli Pure Wall Basin Hostess System 200mm in Chrome finish with exposed - Mizu Drift 40mm bottle trap in chrome.
  • Contemporary frameless mirror to vanity.
Ceiling
  • 2700mm ceiling height to ground floors and 2700mm to upper level.
  • Square set cornice throughout, including garage.
  • Bulkheads throughout (plan specific) to add dimension and define space.
Stairs & Voids
  • Glacial Oak timber treads & risers - stain finish in 2 coats with 1 non slip clear topcoat. Includes landing to base of stairs.
  • Glacial Oak timber stringer - stain finish in 2 coats with 1 clear topcoat.
  • Glacial Oak timber handrail - 68x42mm square with a 3mm pencil round edge - stain finish in 2 coats with 1 clear topcoat.
  • Glacial Oak timber posts - square with 3mm pencil round edge - stain finish in 2 coats with 1 clear topcoat.
  • Rebated glass balustrade.
  • Glass to main entry void and plaster half height walls with Glacial Oak capping to remainder gallery voids - stain finish in 2 coats with 1 clear topcoat.
Outdoor Living
  • Fully lined plaster ceiling with painted timber beading to outer edge to Outdoor Living and Porch.
  • High 2400mm stacker door(s) to Outdoor Living.
Electricals
  • One double power point to each habitable room including garage (single to fridge, microwave space, dishwashers, rangehood and garage door).
  • 2x packs of 20 white LED downlights throughout.
  • Light points allowed in voids only - where there is space to have a mini scaffold to allow bulb changes
  • One downlight to front porch and one single flood light to the laundry on wall.
  • Externally ducted exhaust fans (where required for NCC compliance).
  • 3x TV points (cable run to ceiling for future antenna).
  • One phone point (If NBN available, phone point will be in garage with NBN provision)
  • Hard wired smoke detectors compliant with legislation.
Plumbing
  • Up to 2x 315L Electric Everhot by Rheem (as per Master Plan).
  • Two external taps - one to front and one to rear.
Energy Efficiency
  • R5.0 insulation batts to ceiling including outdoor living & garage (excluding eaves).
  • Anticon Blanket to all Double storey designs only.
  • R2.0 wall batts to the garage/house internal wall of a double storey home only.
  • Wall wrap and R2.0 wall batts to all external lightweight cladded walls.
  • Wall wrap and R2.0 wall batts to all brick veneer walls of double storey homes only.
  • Ceiling fans to all living areas, bedrooms and Outdoor Living, excluding dining room and study nook to be 1400mm white 4 blade ceiling fans to include iconic fan control to ceiling fan switches.
  • Glazing to all windows and doors to be Comfort Plus Grey Glass.
  • Winddriven roof ventilator 300mm with eave vents.
Termite Protection
  • Termite barrier system to Australian Standards 3660.1.
General Items
  • Contour survey, soil report and engineers slab design.
  • QBCC Insurance fees (calculated on base price).
  • Q Leave Insurance Fees (calculated on base price).
  • Pricing applies to homes built within the Brisbane City Council area only.
  • Additional fees may apply for construction within other local authorities.
  • HIA ‘Peace Of Mind’ building contract.
Create an account & save your

43A Home Design

Do you like what you see here? Create an account today and save your home, forever.

Save your home and your specific selections for later so you can discuss your options with your family and friends, make further changes if needed or compare with other designs. Then when you're ready talk to one of our friendly building and design consultants to get your building journey started.

Enquire about your 43A

Fill in your details below. Your enquiry along with the floorplan, facade, and promotions selections you've made will be forwarded to our team of experienced building and design consultants to help get your new home building journey started. When you submit the form you'll also receive a PDF download of your selections.

Your 43A home selections

Display Home locations

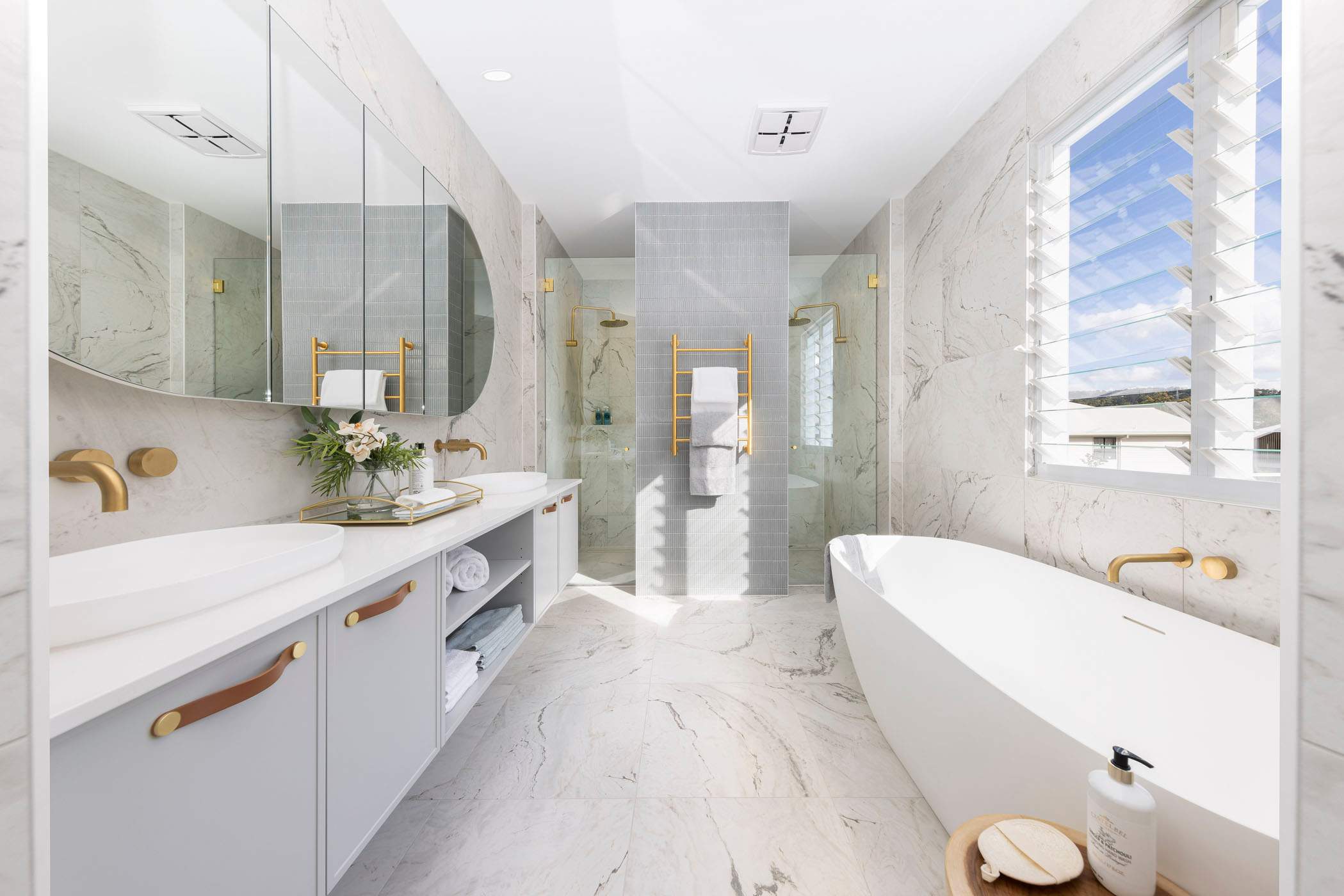

BLK43A house design ensuite

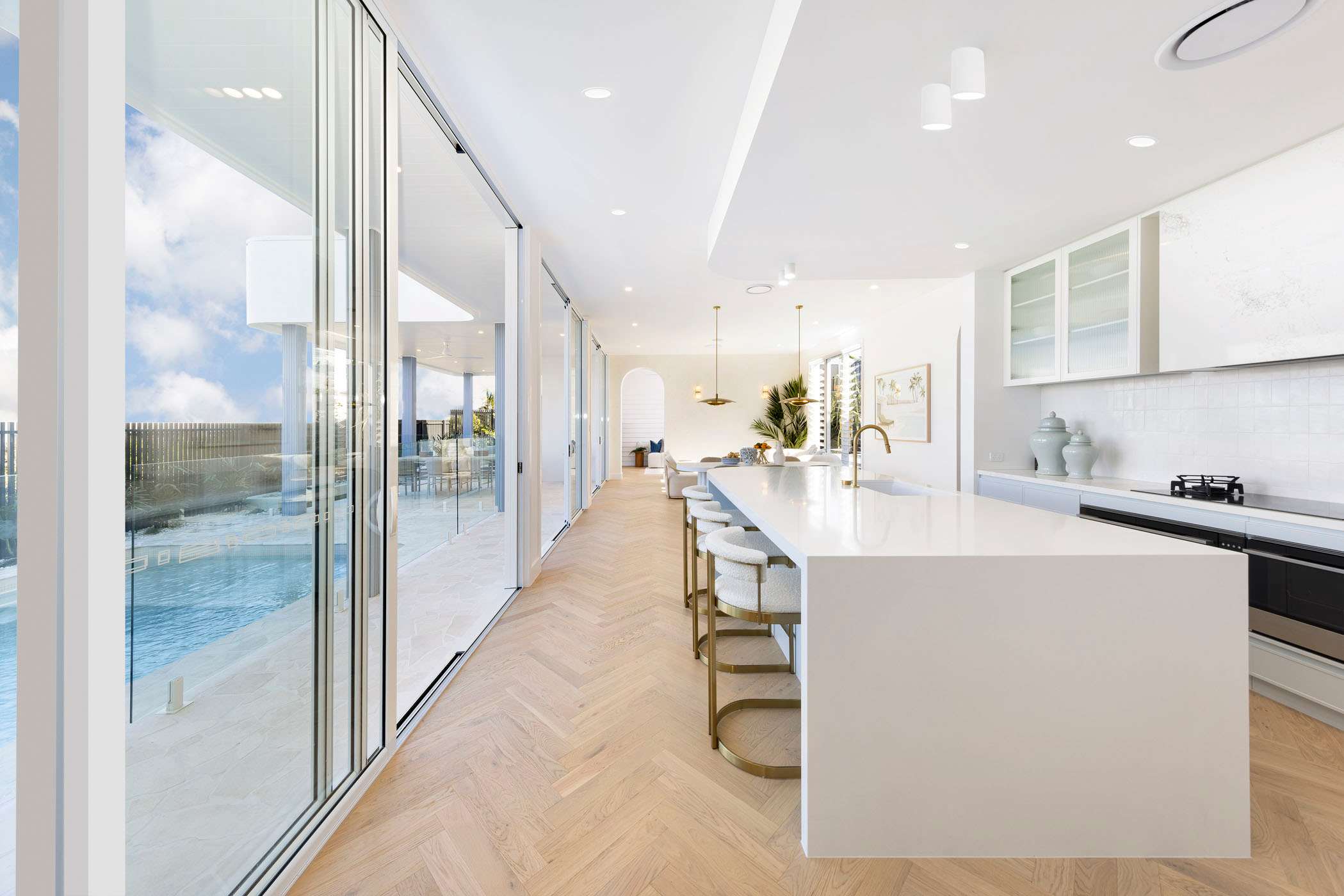

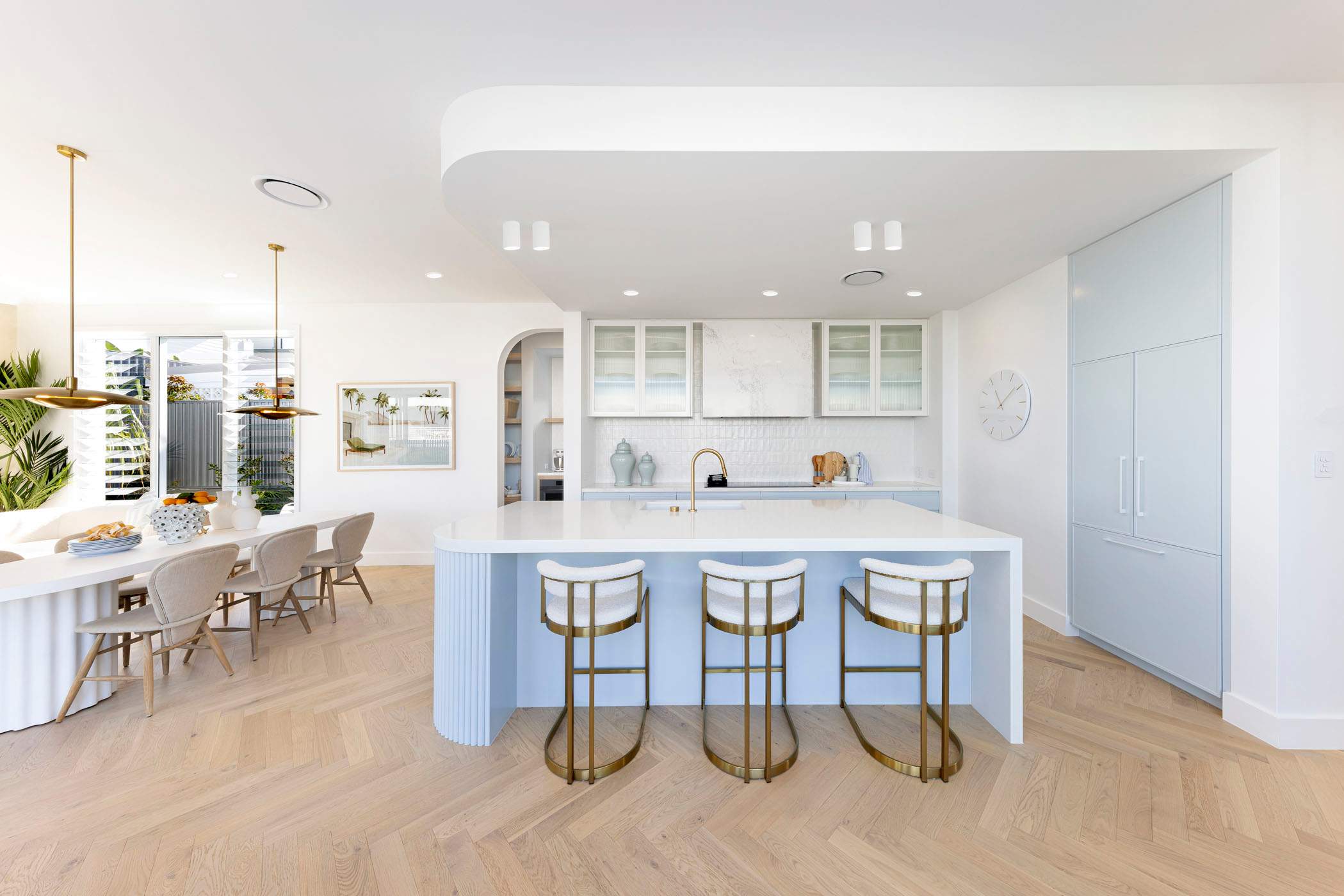

BLK43A house design kitchen

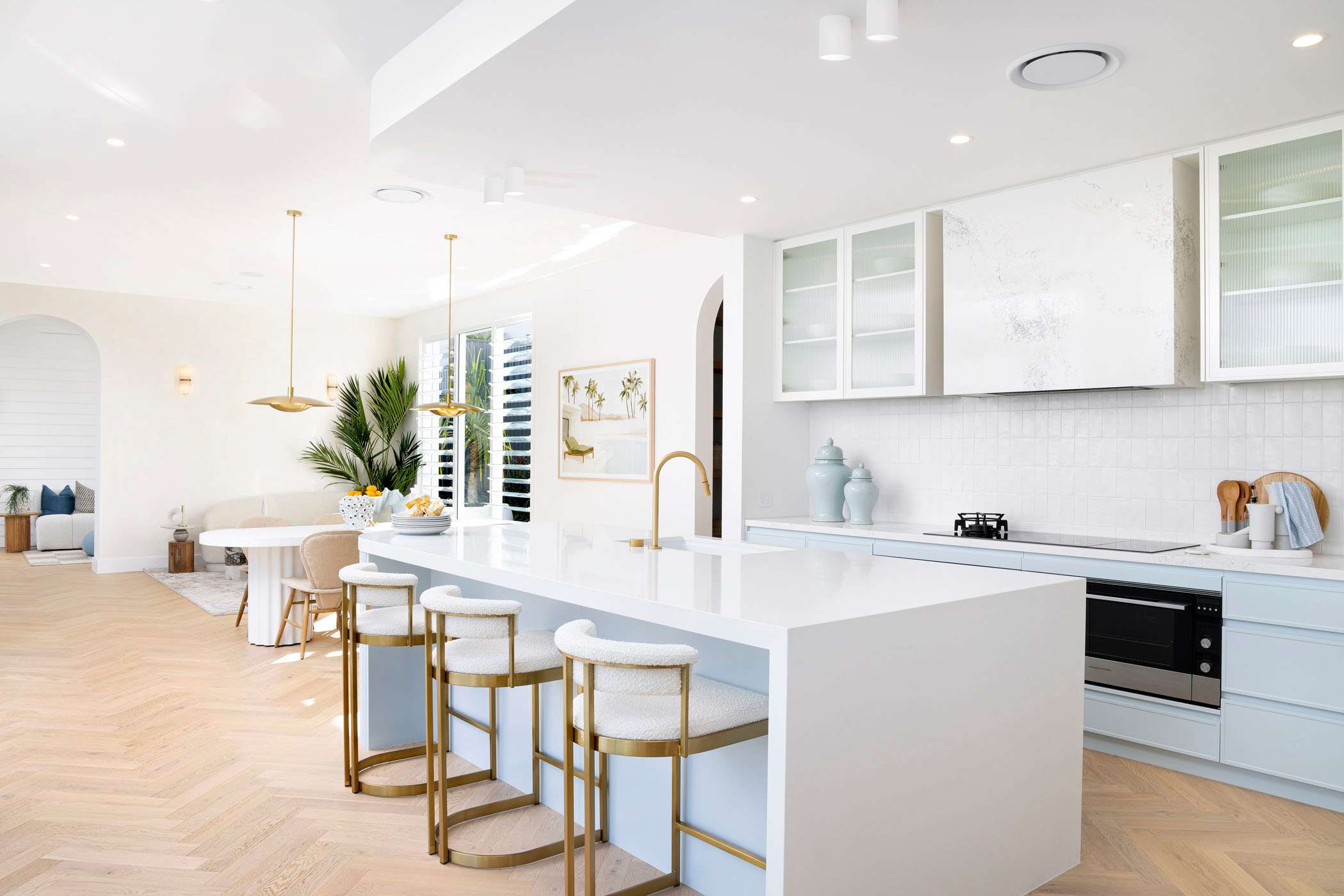

BLK43A house design kitchen

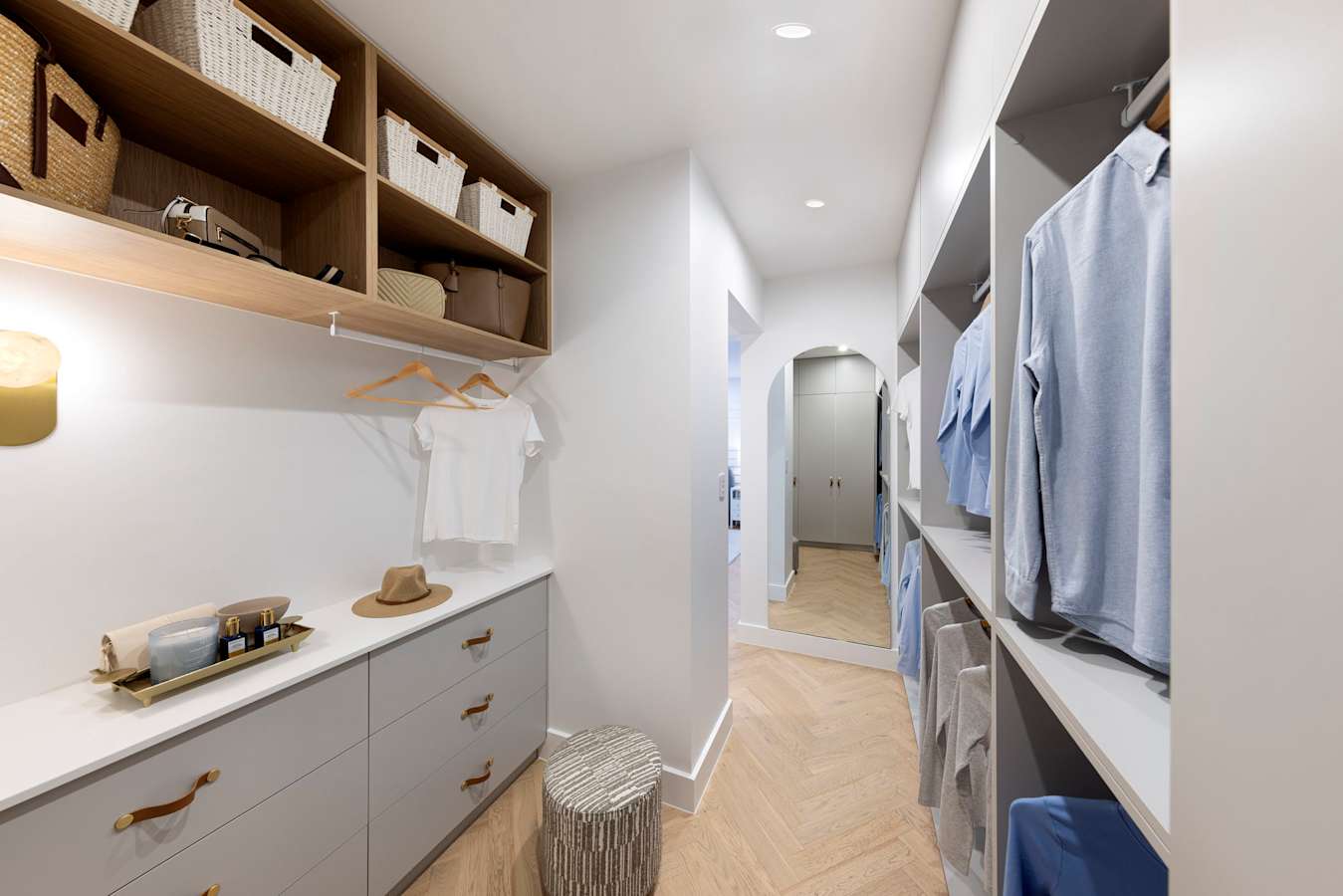

BLK43A house design walk-in-robe

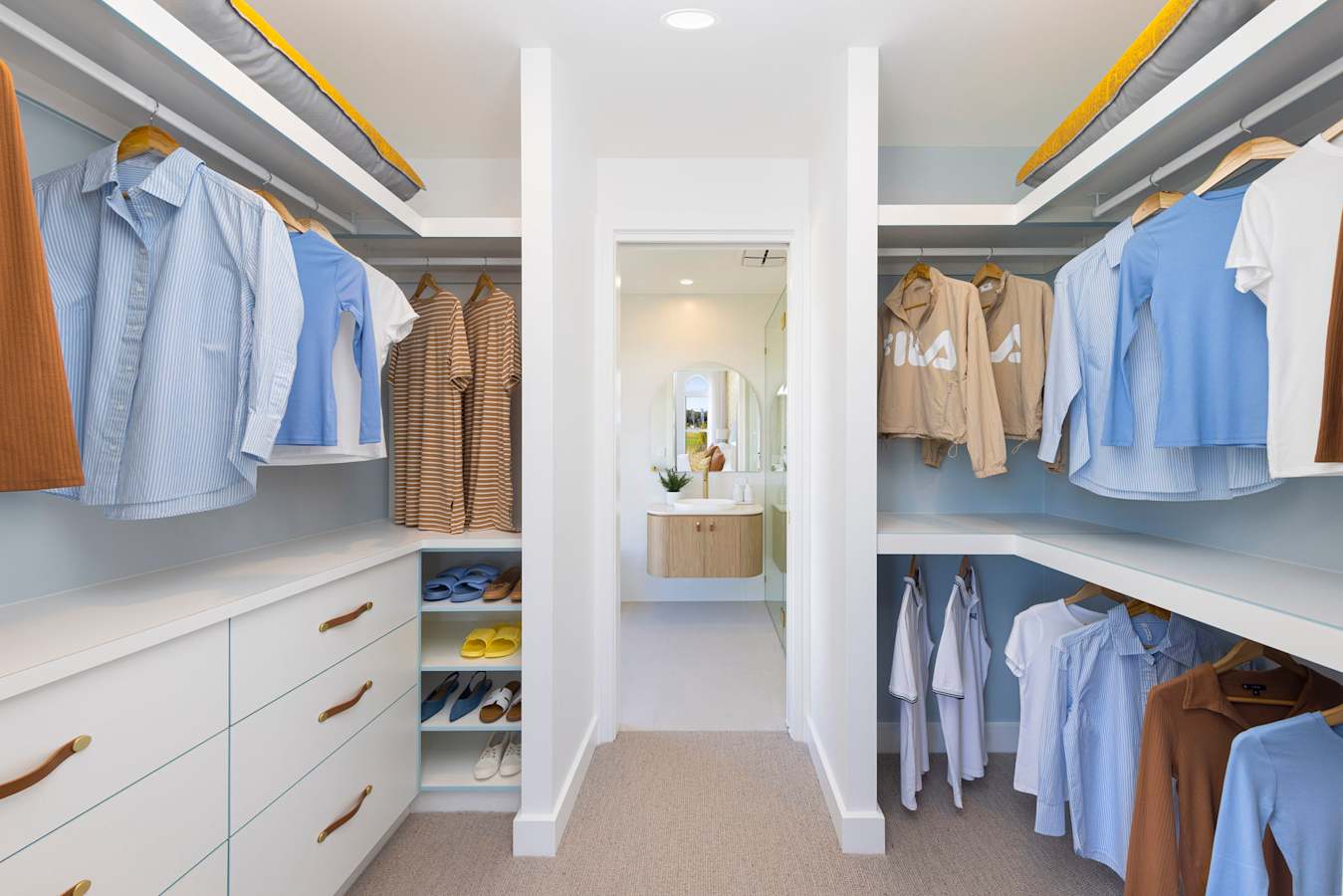

BLK43A house design walk-in-robe

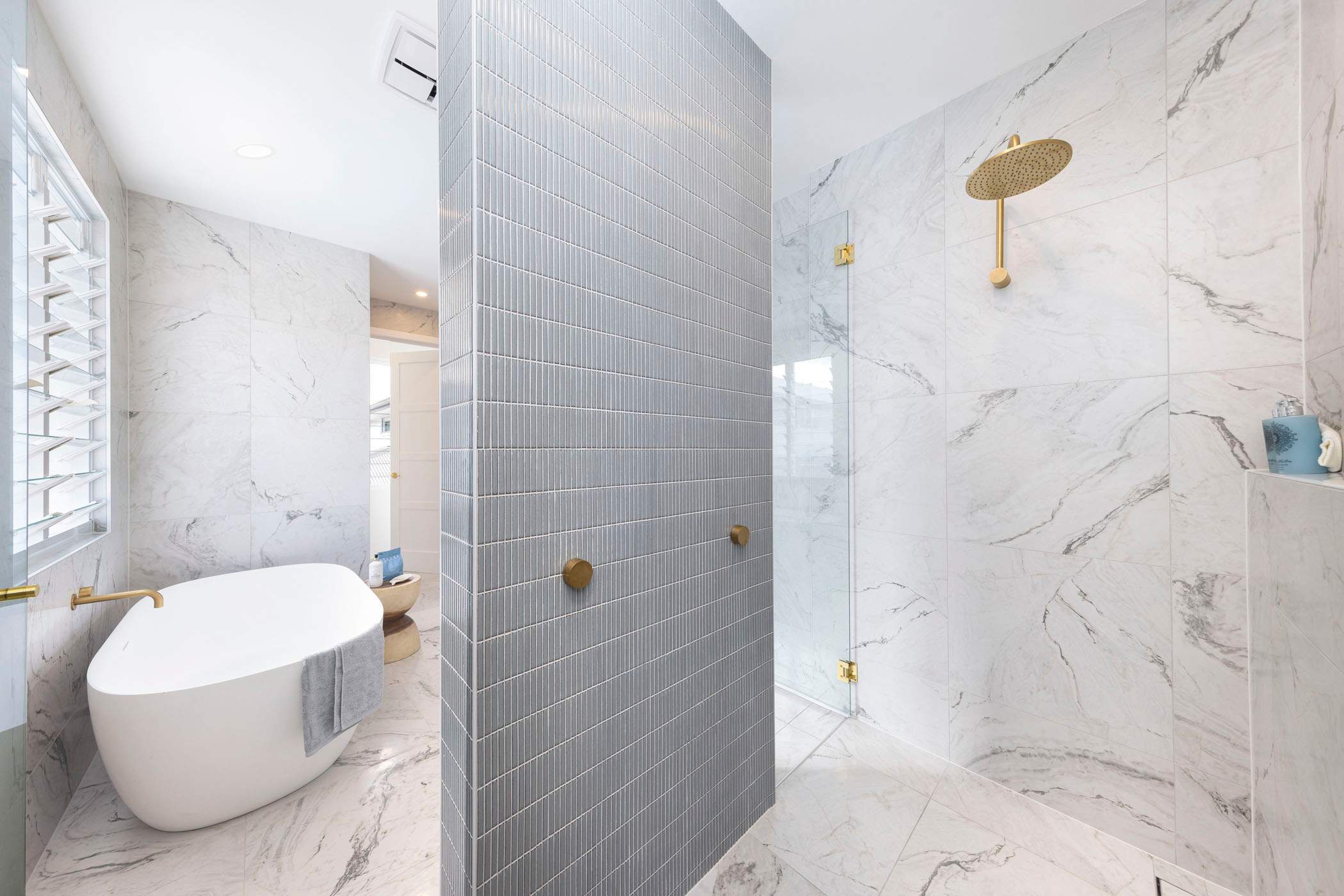

BLK43A house design ensuite

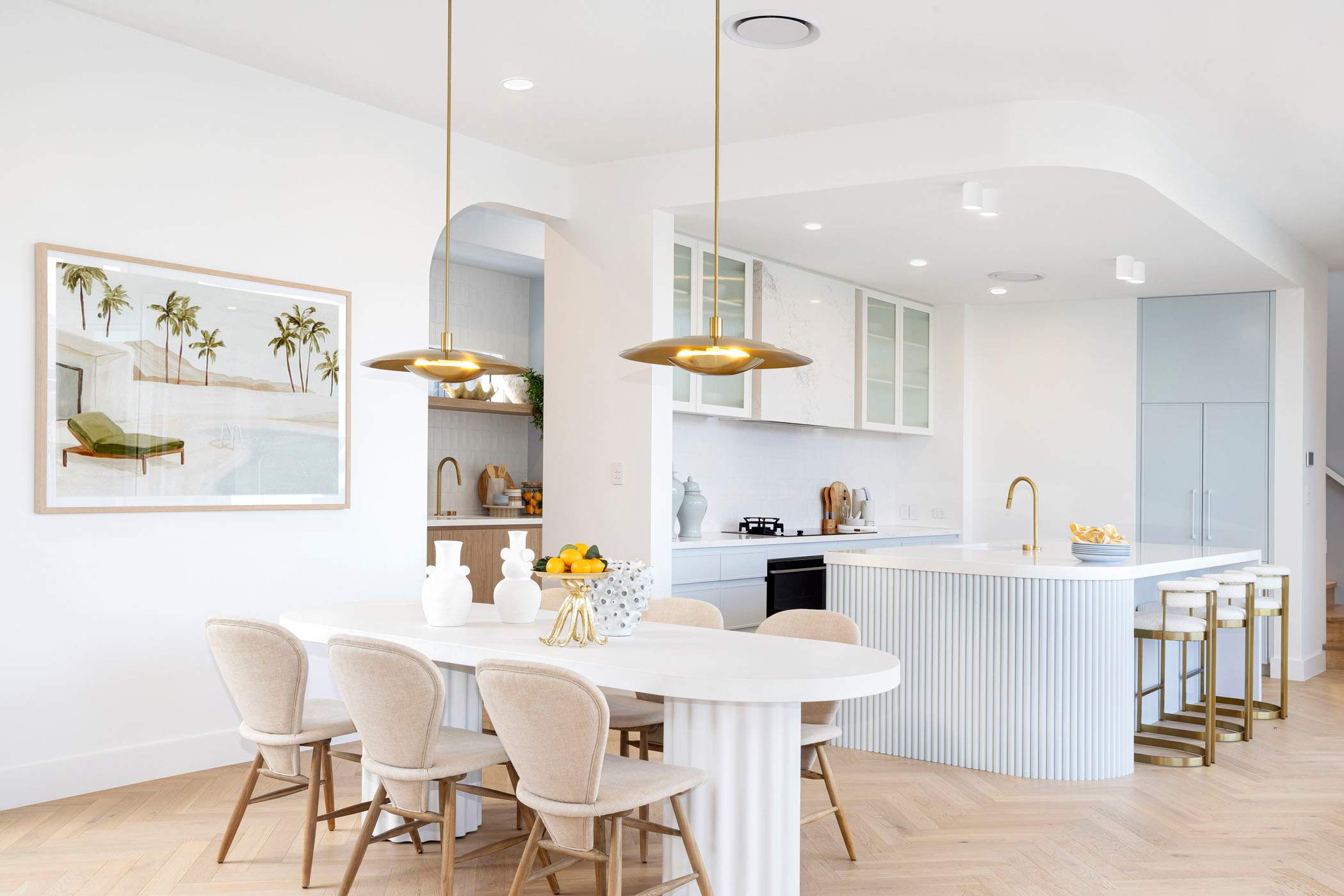

BLK43A house design dining room

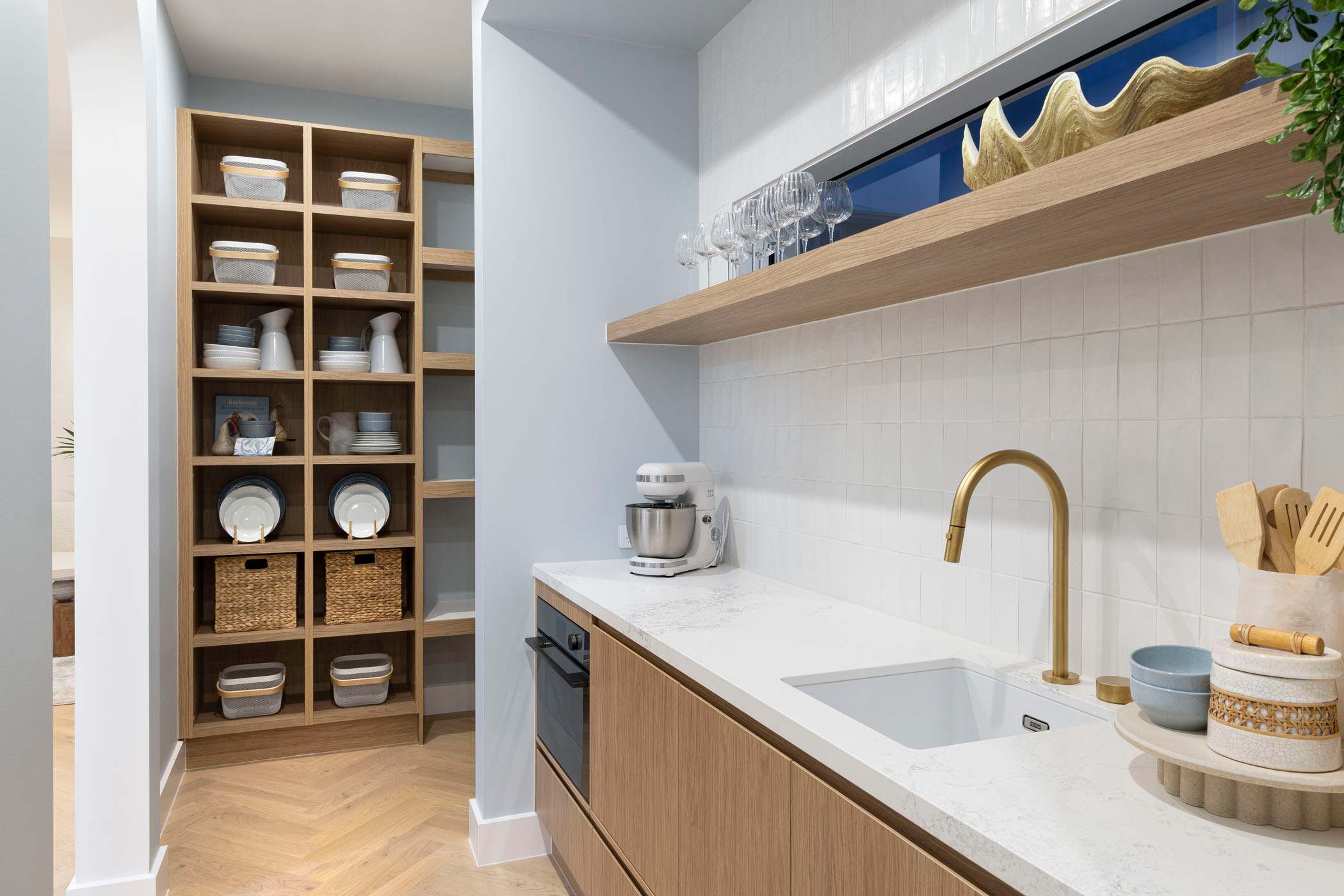

BLK43A house design walk-in-pantry

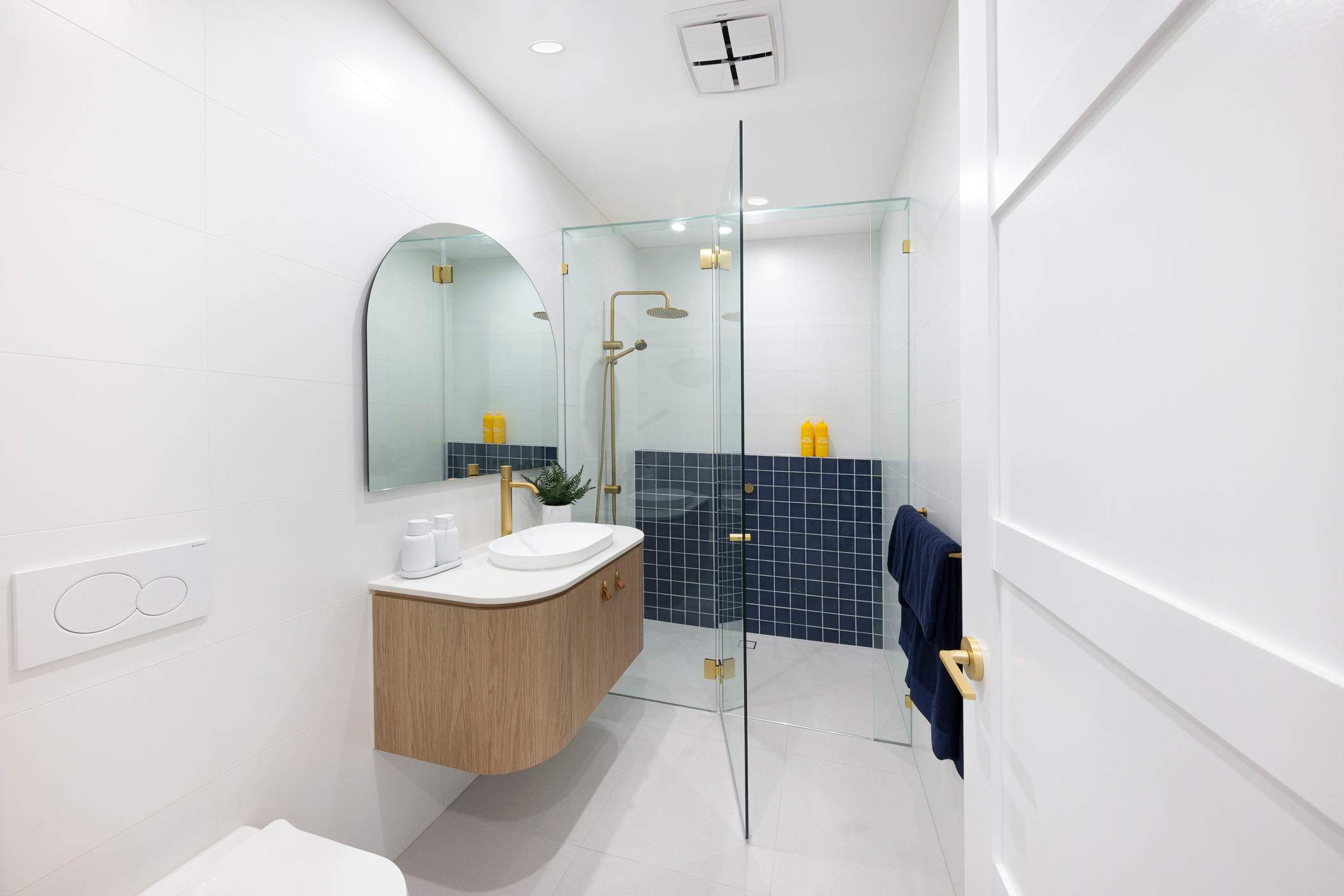

BLK43A house design bathroom
BLK43A house design kitchen

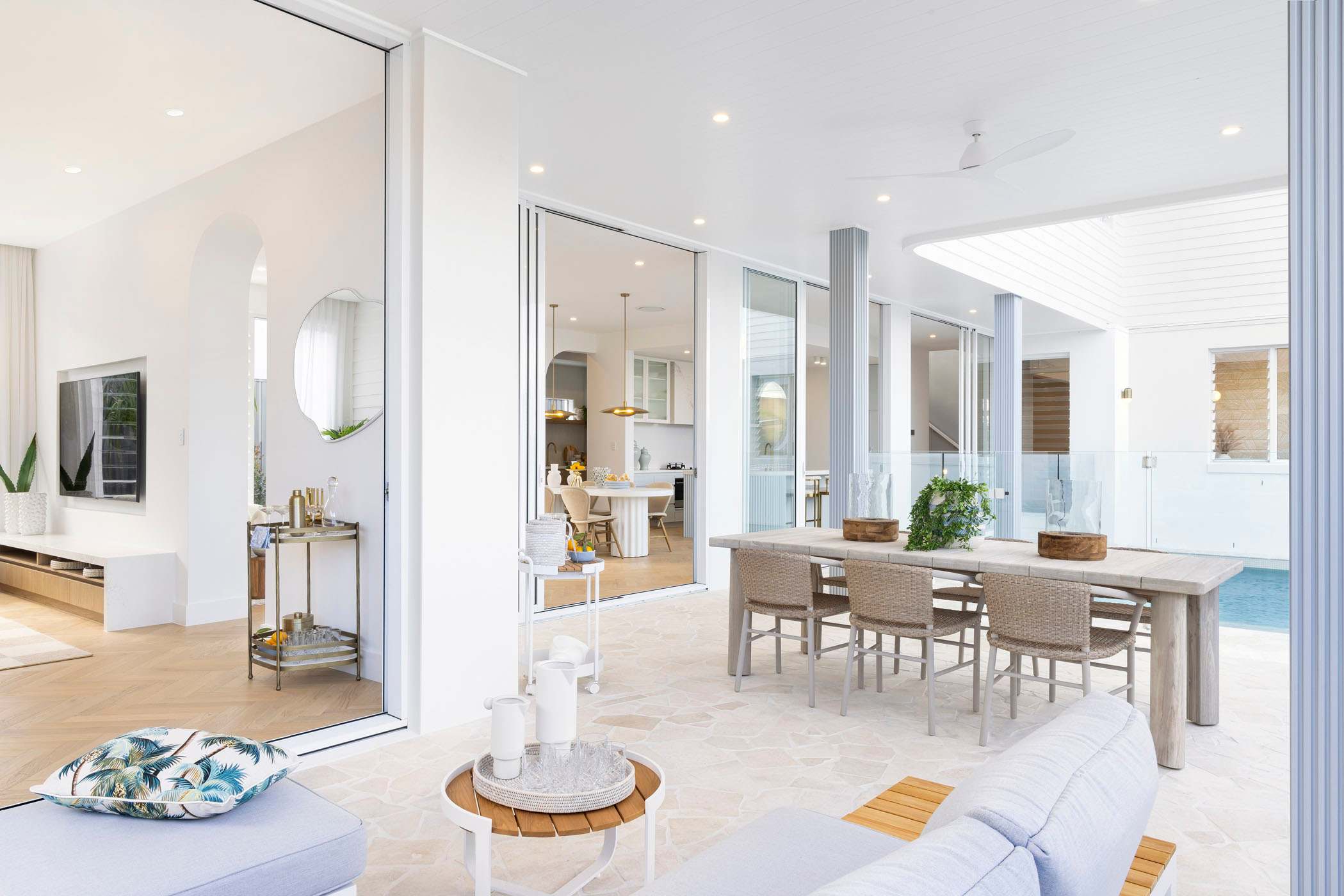

BLK43A house design outdoor living

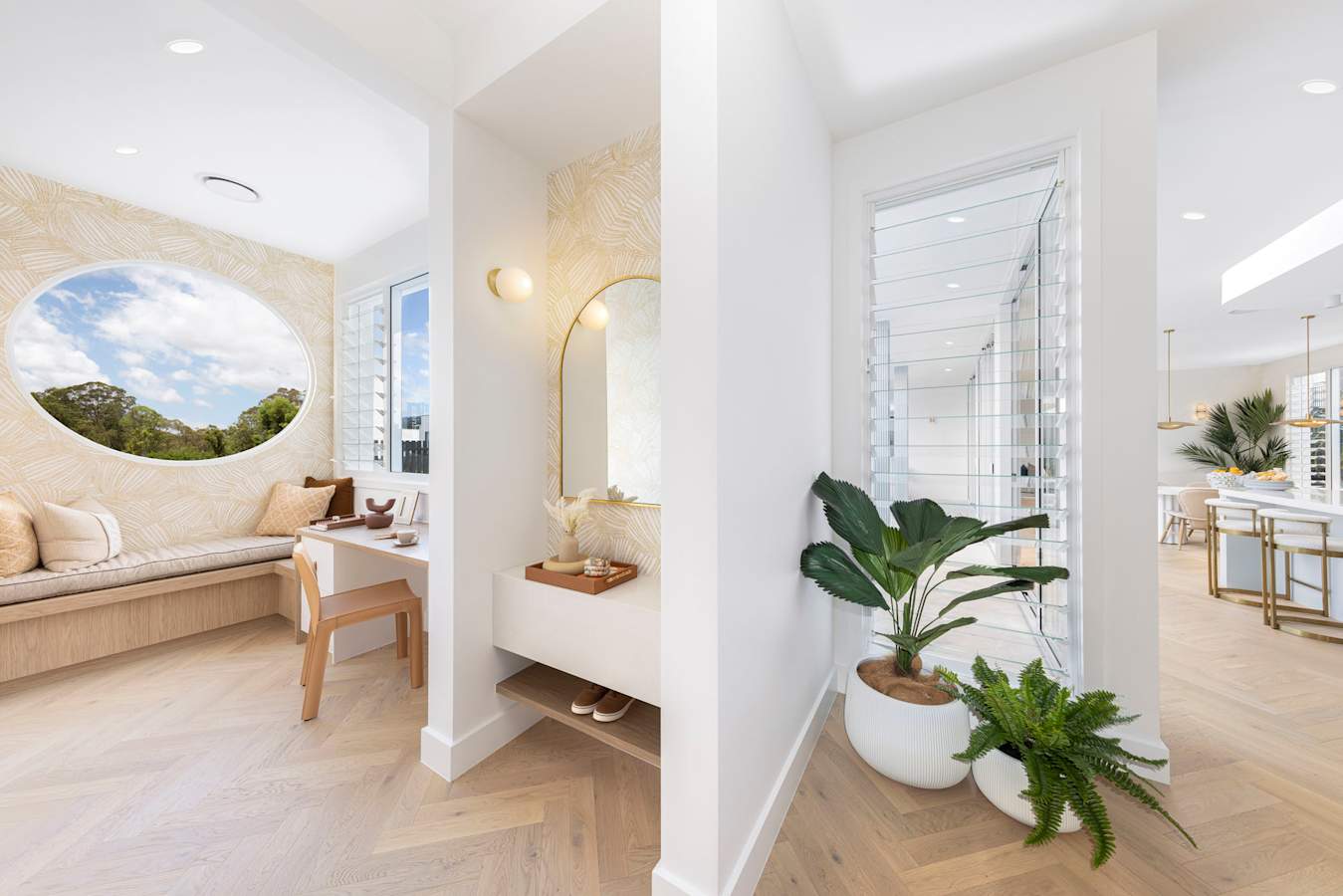

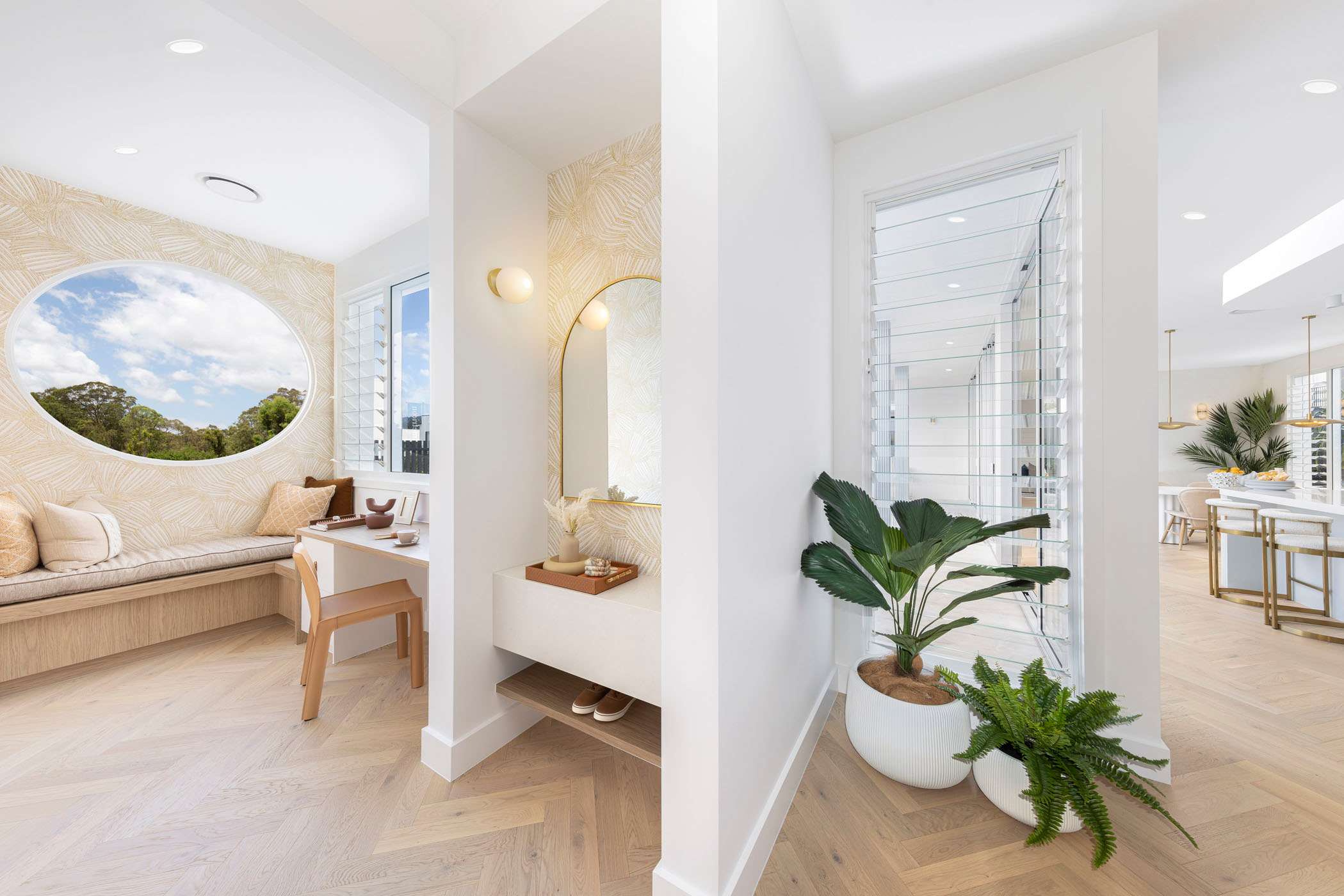

BLK43A house design home office

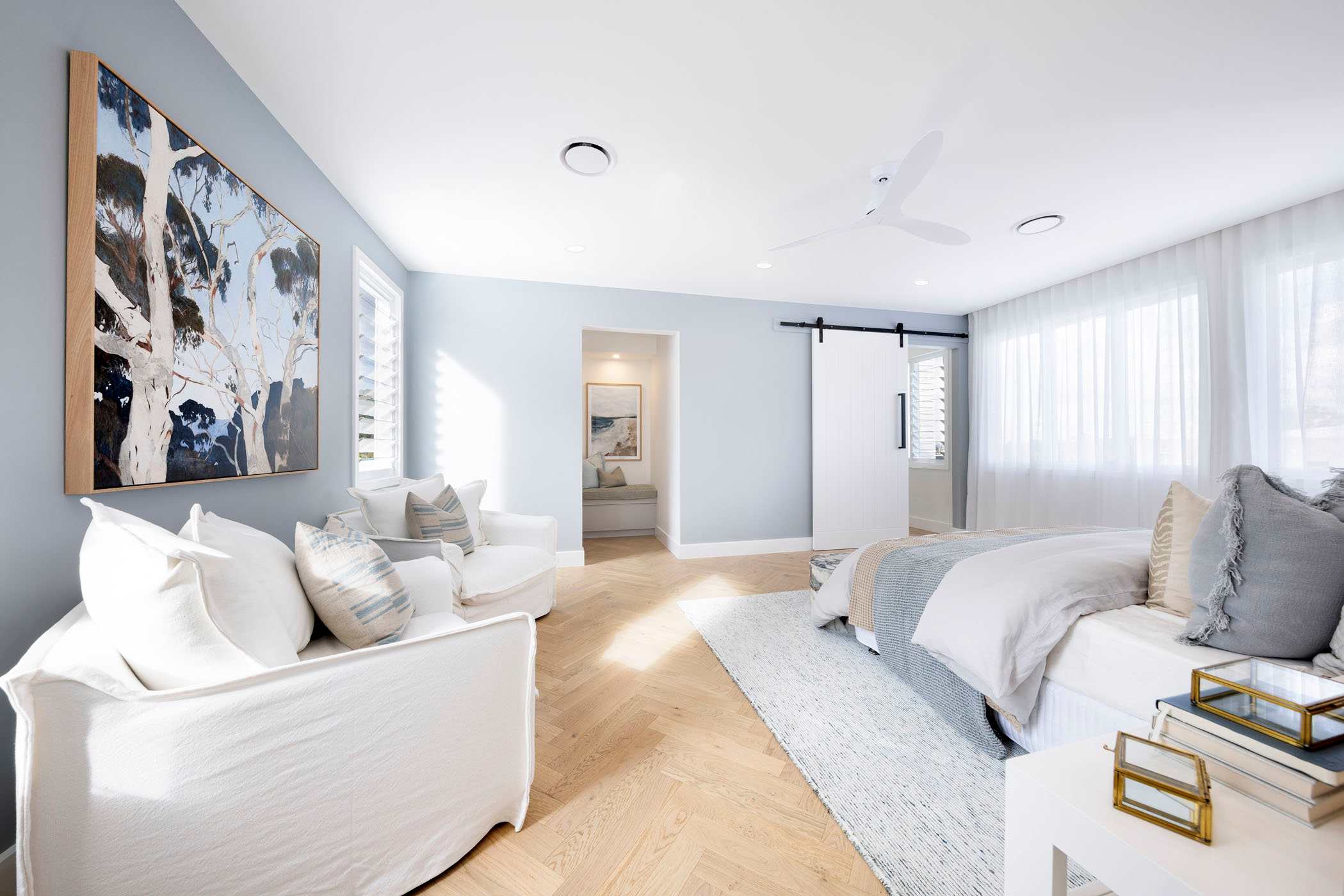

BLK43A house design bedroom
